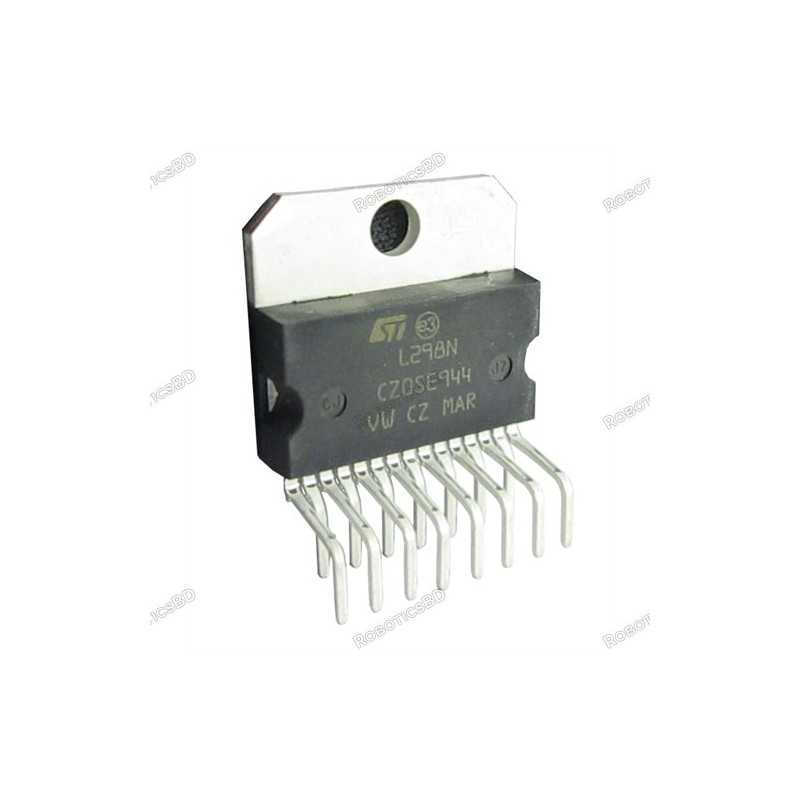

The L298 is an integrated monolithic circuit in a 15- lead Multiwatt and PowerSO20 packages. It is a high voltage, a high current dual full-bridge driver designed to accept standard TTL logic levels and drive inductive loads such as relays, solenoids, DC and stepping motors. Two enable inputs are provided to enable or disable the device independently of the input signals. The emitters of the lower transistors of each bridge are connected together and the corresponding external terminal can be used for the connection of an external sensing resistor. An additional
supply input is provided so that the logic works at a lower voltage. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Low saturation voltage
- Over-temperature protection
- High noise immunity
- Applications: Motor Drive & Control
- Operating Supply Voltage Up To 46 V
- Total Dc Current Up To 4 A
- Low Saturation Voltage
- Overtemperature Protection
- Logical “0” Input Voltage Up To 1.5 V (High Noise Immunity)
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage (VDC) |
0 ~ 46 |
| Max. Operating Current (mA) |
4A |
| Length (mm) |
20 |
| Width (mm) |
4.5 |
| Height (mm) |
17 |
| Weight (gm) |
6 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
For Technical Specifications about the IC go through the Datasheet
Note: Brand might be different from the picture as per stock
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x L298N-BRIDGE DRIVER IC
