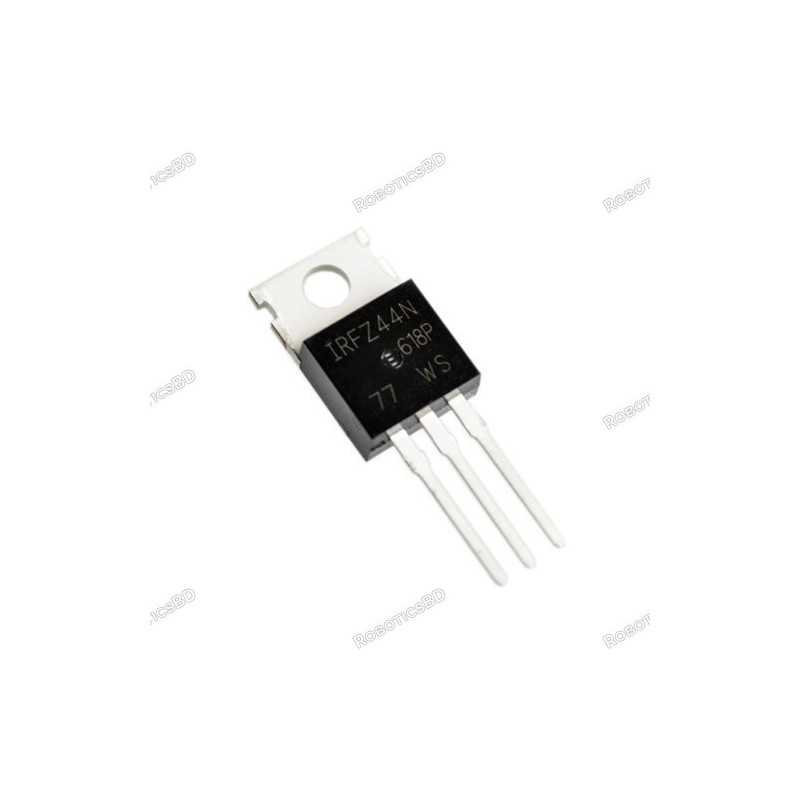

IRFZ44N is a type of N-Channel Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). It is a voltage-controlled device that can be used as a switch or an amplifier, depending on the circuit configuration.
The IRFZ44N MOSFET has a maximum drain-source voltage (Vds) of 55V, a maximum drain current (Id) of 48A, and a maximum power dissipation (Pd) of 625W. It is capable of fast switching speeds and low on-resistance, making it a popular choice for high-power switching applications.
Some common applications of the IRFZ44N MOSFET include motor control, power conversion, power switching, DC-DC converters, and Class-D audio amplifiers. Due to its high current handling capability and low on-resistance, the IRFZ44N MOSFET is well suited for use in high-power applications where fast switching speeds and low power loss are required. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
High Current Handling Capability: The IRFZ44N MOSFET has a maximum drain current (Id) of 48A, making it capable of handling high current levels.
Low On-Resistance: The IRFZ44N MOSFET has a low on-resistance, which minimizes power loss and increases efficiency in high-power switching applications.
Fast Switching Speed: The IRFZ44N MOSFET has fast switching speeds, making it ideal for use in high-frequency applications where fast switching is required.
High Power Dissipation: The IRFZ44N MOSFET has a maximum power dissipation (Pd) of 625W, making it capable of handling high power levels in a wide range of applications.
Versatility: The IRFZ44N MOSFET can be used as a switch or an amplifier, making it a versatile device for a variety of applications. It is well suited for use in high-power switching, motor control, power conversion, DC-DC converters, and Class-D audio amplifiers.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Package/Case | PDIP-8 |
| Minimum Supply Voltage (V) | 4.5 |
| Maximum Supply Voltage (V) | 5.5 |
| Product Type | Power MOSFET |
| Operating Temperature Range (°C) | -55 to 175 |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x IRFZ44N MOSFET
The latest price of IRFZ44N MOSFET in Bangladesh is BDT 35 You can buy the IRFZ44N MOSFET at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
