MT8870DE Robotics Bangladesh
  • MT8870DE Robotics Bangladesh

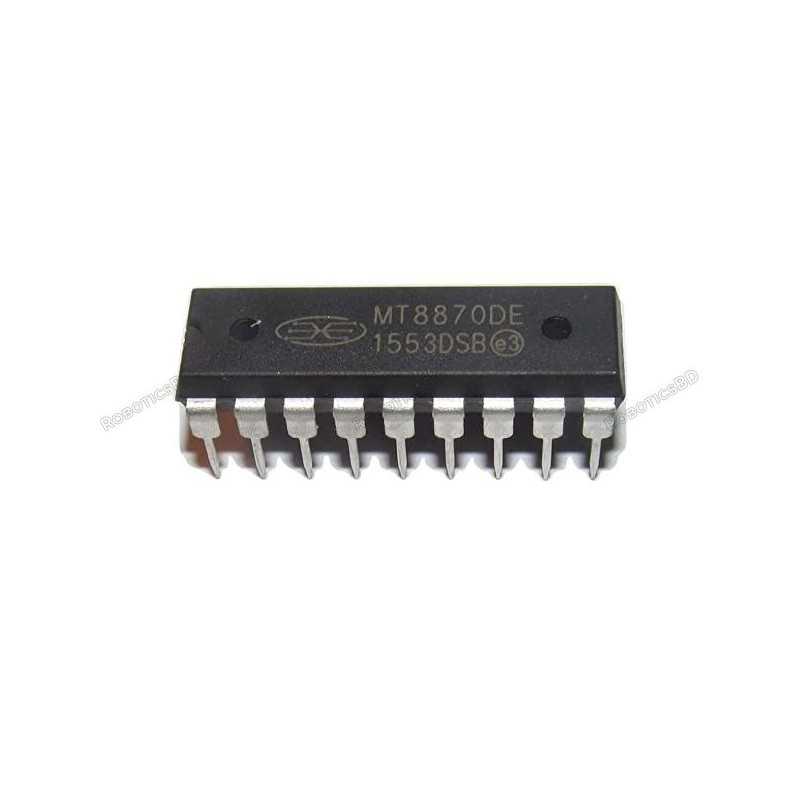

MT8870DE

RBD-1432
  • IC Name: MT8870DE
  • Package/Case: DIP-18
BDT 70
Quantity
In-Stock

6 people recently added this item to the cart
28 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The MT8870D/MT8870D-1 is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high and low group filters; the decoder uses digital counting techniques to detect and decode all 16 DTMF tone-pairs into a 4-bit code. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Receiver system for British Telecom (BT) or CEPT Spec (MT8870D-1)
  2. Paging systems
  3. Repeater systems/mobile radio
  4. Credit card systems
  5. Remote control
  6. Personal computers
  7. Telephone answering machine

Features:

  1. Complete DTMF Receiver
  2. Low power consumption
  3. Internal gain setting amplifier
  4. Adjustable guard time
  5. Central office quality
  6. Power-down mode
  7. Inhibit mode. RoboticsBD
  8. Backward compatible with MT8870C/MT8870C-1

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-18
Minimum Supply Voltage (V) 5
Maximum Supply Voltage (V) 5
Product Type MT8870DE CMOS Low Power DTMF DECODER Receiver IC
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x MT8870DE

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of MT8870DE in Bangladesh?

The latest price of MT8870DE in Bangladesh is BDT 70 You can buy the MT8870DE at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
