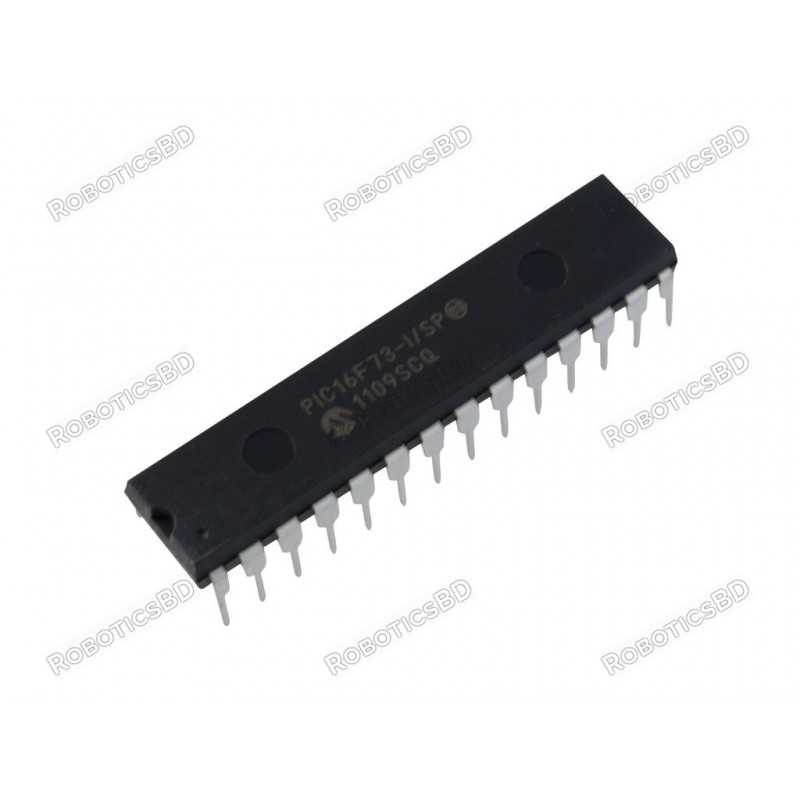

PIC16F73 Microcontroller

RBD-1416
  • High performance RISC CPU
  • Only 35 single word instructions to learn
  • All single cycle instructions except for program branches which are two-cycle
BDT 110
Quantity
In-Stock

7 people have purchased this item in last 12 months
33 people recently added this item to the cart
108 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices. The PIC16F73 features 5 channels of 8-bit Analog-to-Digital (A/D) converter with 2 additional timers, 2 capture/compare/PWM functions and the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART). All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1.  Power-on Reset (POR)
  2.  Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  3.  Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  4.  Programmable code protection
  5.  Power saving SLEEP mode
  6.  Selectable oscillator options
  7.  In-Circuit Serial Programming (ICSP) via two pins

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Program Memory Type Flash
Program Memory Size (KB) 7
CPU Speed (MIPS/DMIPS) 5
Data EEPROM (bytes) 0
Capture/Compare/PWM (CCP) 2
Enhanced Capture/Compare/PWM (ECCP) 0
Max 8 Bit Digital Timers 2
Number of ADCs 1
ADC Channels 5
Max ADC Resolution (bits) 8
Number of Comparators 0
Number of USB Modules 0
Number of CAN Modules 0
Segment LCD 0
Ethernet None
Temp. Range Min. -40
Temp. Range Max. 125
Operation Voltage Max.(V) 5.5
Operation Voltage Min.(V) 2
Pin Count 28
Low Power No
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x PIC16F73 Microcontroller.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of PIC16F73 Microcontroller in Bangladesh?

The latest price of PIC16F73 Microcontroller in Bangladesh is BDT 110 You can buy the PIC16F73 Microcontroller at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
