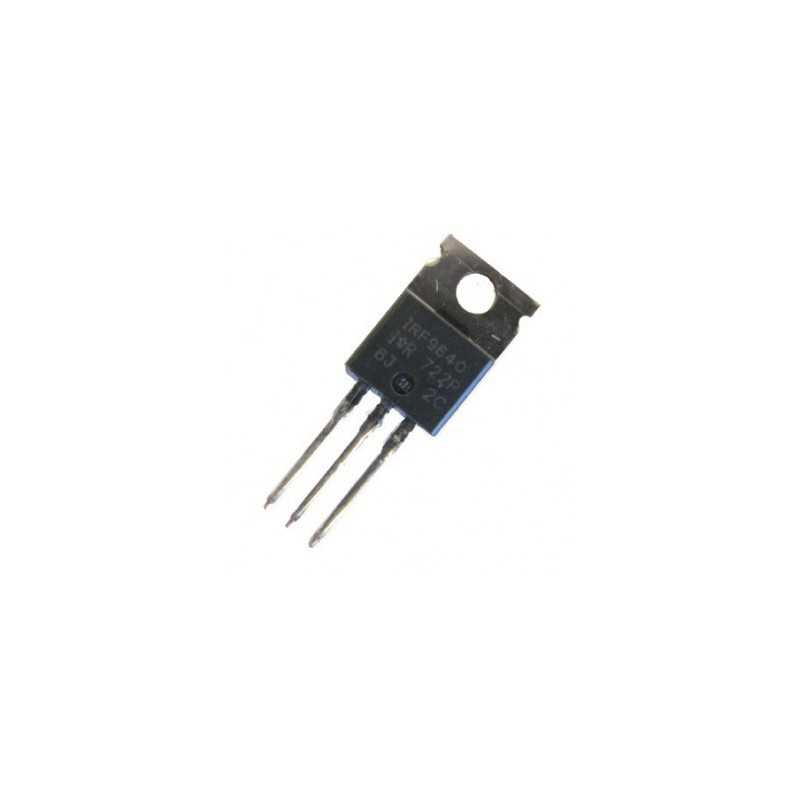

These IRF9640 P Channel MOSFET are P-Channel enhancement mode silicon-gate power field-effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and as drivers for other high-power switching devices.
| General Specification | |
| Package/Case | PDIP-16 |
| Drain-source voltage (V) | -200 |
| Gate-source voltage (V) | +/-20 |
| Product Type | Power MOSFET |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
1 x IRF9640
The latest price of IRF9640 in Bangladesh is BDT 60 You can buy the IRF9640 at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
