UC3843 PWM Robotics Bangladesh
  • UC3843 PWM Robotics Bangladesh

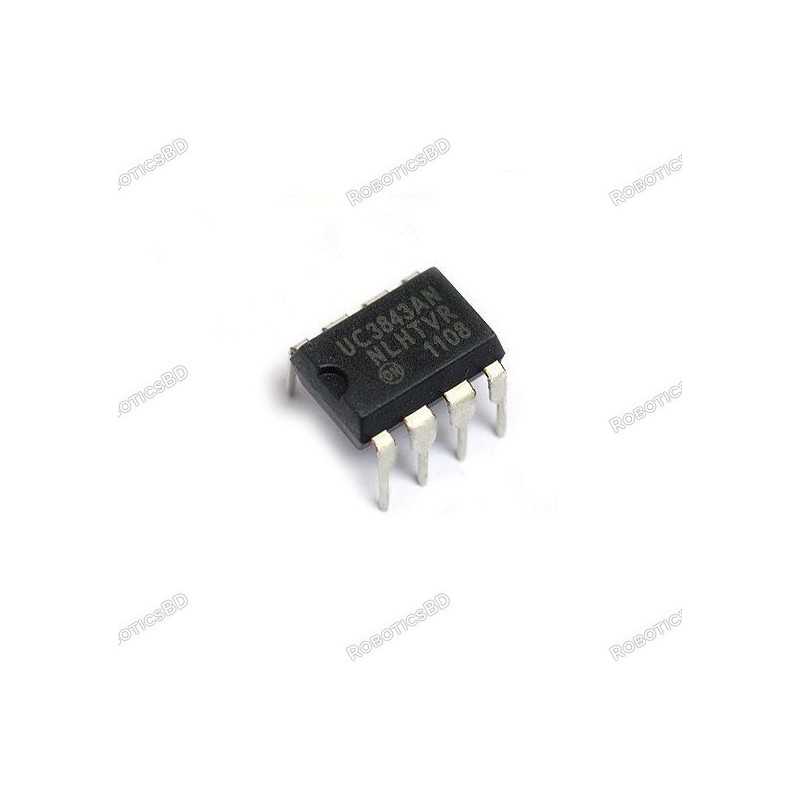

UC3843 PWM

RBD-1434
  • IC Name: UC3843
  • Package/Case: DIP-8
BDT 15
rating Read the 2 reviews
Average rating: 5/5 - Number of reviews: 2
Quantity
In-Stock

3 people have purchased this item in last 12 months
35 people recently added this item to the cart
21 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The UC3842/UC3843/UC3844/UC3845 are fixed frequencycurrent-mode PWM controller. They are specially designed for Off-Line and DC to DC converter applications with minimum external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totempole output for driving a Power MOSFET. The UC3842 and UC3844 have UVLO thresholds of 16V (on) and 10V (off). The UC3843 and UC3845 are 8.5V(on) and 7.9V (off). The UC3842 and UC3843 can operate within 100% duty cycle. The UC3844 and UC3845 can operate with 50% duty cycle. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Optimized for OFF-LINE and DC to DC converters
  2. Low Start-Up Current 1mA
  3. Automatic Feed Forward Compensation
  4. Pulse-by-pulse current limiting
  5. Enhanced load response characteristics
  6. Under-voltage lockout with hysteresis
  7. Double pulse suppression
  8. High current totem pole output
  9. Internally trimmed bandgap reference

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-8
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 30
Product Type UC3842/UC3843/UC3844/UC3845 SMPS Controller
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x UC3843 PWM

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of UC3843 PWM in Bangladesh?

The latest price of UC3843 PWM in Bangladesh is BDT 15 You can buy the UC3843 PWM at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1434
21 Items
As expected
rating
06/01/2025
Layes
Works as expected
Pwm 3843
rating
25/05/2024
Paris
Very good pwm ic
