CD4016 Robotics Bangladesh
  • CD4016 Robotics Bangladesh

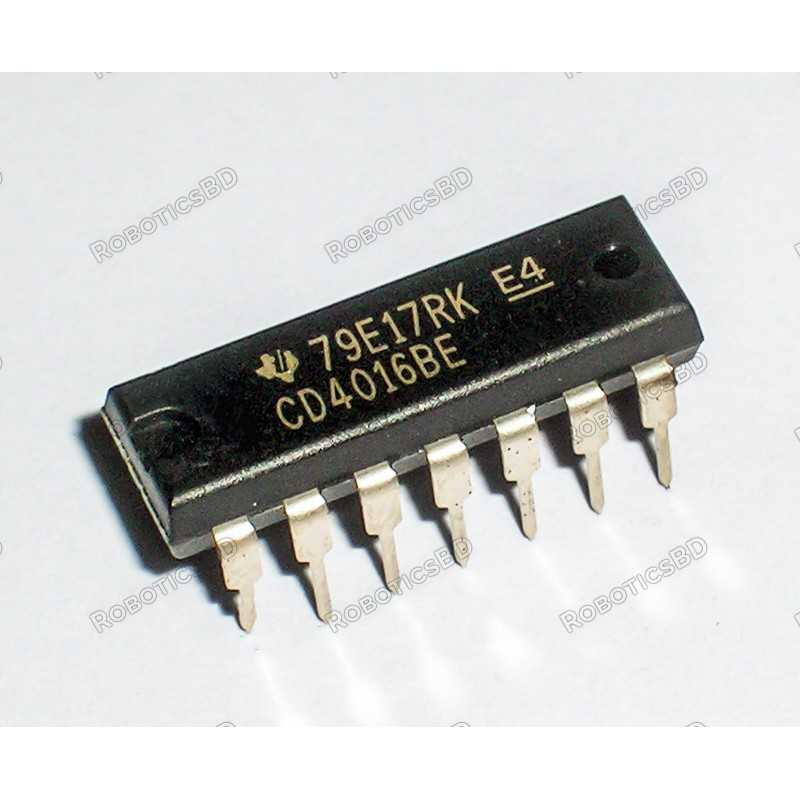

CD4016

RBD-1282
  • Package/Case: PDIP (N)
  • IC Name: CD4016
BDT 20
rating Read the 5 reviews
Average rating: 3.5/5 - Number of reviews: 5
Quantity
In-Stock

6 people have purchased this item in last 12 months
4 people recently added this item to the cart
26 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The  CD4016BC  is  a  quad  bilateral  switch  intended  for  the transmission or multiplexing of analog or digital signals. It is pin-for-pin compatible with CD4066BC. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Wide supply voltage range: 3V to 15V
  2. Wide range of digital and analog switching: ±7.5 VPEAK
  3. “ON” resistance for 15V operation: 400Ω (typ.)
  4. Matched “ON” resistance over 15V signal input: ∆RON = 10Ω (typ.)
  5. High degree of linearity:0.4% distortion (typ.)@ fIS= 1 kHz, VIS = 5 Vp-p,VDD−VSS = 10V, RL = 10 kΩ
  6. Extremely low “OFF” switch leakage:0.1 nA (typ.)@ VDD− VSS = 10VTA = 25°C

Applications:

  1. Analog signal switching/multiplexing
  2. Signal gating
  3. Squelch control
  4. Chopper
  5. Modulator/Demodulator
  6. Commutating switch
  7. Digital signal switching/multiplexing
  8. CMOS logic implementation
  9. Analog-to-digital/digital-to-analog conversion
  10. Digital control of frequency, impedance, phase, and analog-signal gain

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-16
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 16
Product Type CD4016BC Quad Bilateral Switch
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet TI
  2. Datasheet
  3. Product Page

Package Includes:

1 x CD4016B

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of CD4016 in Bangladesh?

The latest price of CD4016 in Bangladesh is BDT 20 You can buy the CD4016 at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-1282
26 Items
CD 4016
rating
28/08/2024
Md. Ismail.
I found the IC in good condition.
OK
rating
25/09/2022
Good & Bad
OK
Not Used
rating
22/01/2022
Noyon
Not Used
Well
rating
22/01/2022
Noyon
Well
Well
rating
22/01/2022
Noyon
Well
