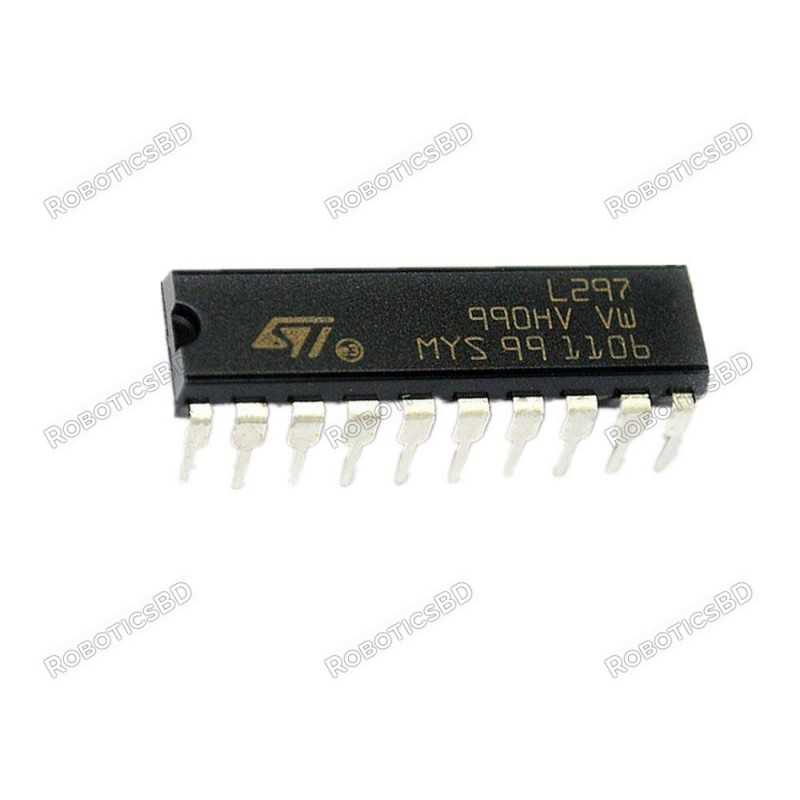

L297 Stepper Motor Controller IC

RBD-1606
  • Supply Voltage Range: 4.75V to 7V
  • Driver Case Style: DIP
  • No. of Pins: 20
  • Operating Temperature Range: -40°C to +150°C
BDT 96
Quantity
In-Stock

1 person has purchased this item
13 people recently added this item to the cart
45 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The L297 Stepper Motor Controller IC generates four phase drive signals for two phase bipolar and four phase unipolar step motors in microcontroller controlled applications. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Half/Full Step Modes
  2. Clockwise/Anticlockwise
  3. Direction Switchmode Load Current Regulation
  4. Programmable Load Current
  5. Enable Input

Features:

  1. Motor Type: Stepper
  2. No. of Outputs: 2
  3. Output Current: 10mA
  4. Output Voltage: 3.9V
  5. Supply Voltage Range: 4.75V to 7V
  6. Driver Case Style: DIP
  7. No. of Pins: 20
  8. Operating Temperature Range: -40°C to +150°C
  9. SVHC: No SVHC (19-Dec-2011)
  10. Base Number: 297
  11. Controller Type: Motor
  12. Device Marking: L297/1
  13. Drive Configuration: 4 Phase
  14. IC Generic Number: 297
  15. Logic Function Number: 297

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-20
Minimum Supply Voltage (V) 4.5
Maximum Supply Voltage (V) 7
Product Type Stepper Motor Driver
Operating Temperature Range (°C) –40° C to +150° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x L297 Stepper Motor Controller IC.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of L297 Stepper Motor Controller IC in Bangladesh?

The latest price of L297 Stepper Motor Controller IC in Bangladesh is BDT 96 You can buy the L297 Stepper Motor Controller IC at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
