They are the special choice for heavy-duty CNC machines. They overpass the NEMA17 Stepper Motors because of their inherent operational advantages including comparably high torque at high speeds. This NEMA 23 Stepper Motor is a powerhouse when it comes to larger machines that require extra torque. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor can provide 10.1 kg-cm of torque at 2.8A current per phase. RoboticsBD
The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. The NEMA 23 10.1 kg-cm Hybrid Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.
One can equip them on CNC Milling, CNC Router like application which demands extra torque than provided by NEMA17 Stepper Motors.
It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry. RoboticsBD
The motor’s shaft has been machined for good grip with a pulley, drive gear, etc. and especially avoiding stall or slip.
This motor is compatible with the bracket on Robotics Bangladesh. RoboticsBD
Note :

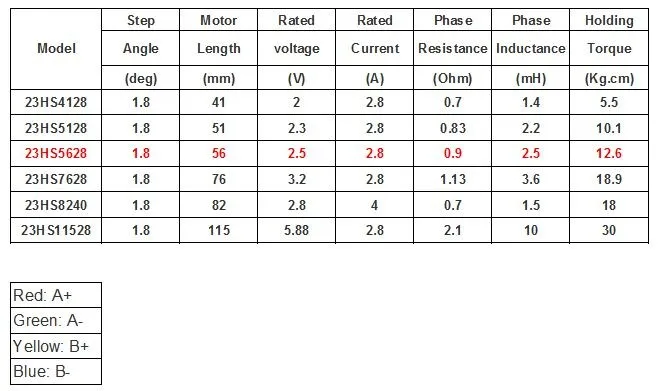

| General Specification | |
| Step Angle | 1.8° |
| Holding Torque (Kg-Cm) | 10.1 |
| Operating Voltage (VDC) | 2.3 |
| Supply Current (A) | 2.8 A/Phase |
| No. of Leads | 4 |
| Inductance (mH/Phase) | 2.2 |
| Resistance (Ω) | 0.83 |
| Rotor Inertia (gm-cm2) | 275 |
| Weight (gm) | 650 |

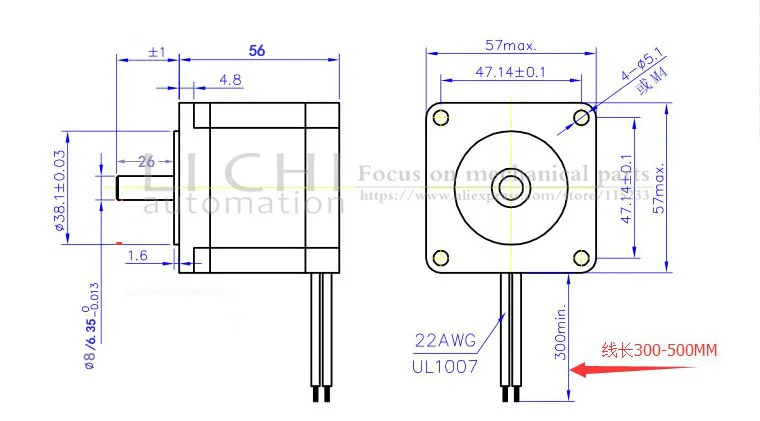

| Dimensions (mm) LxWxH | 51x57x57 |
| Detent Torque (kg-cm) | 0.36 |
| Frame Size (mm) | 57 x 57 |
| Inductance Accuracy | ±20% |
| Resistance Accuracy | ±10% |
| Shaft Diameter (mm) | 6.35 |
| Shaft Length (mm) | 20.6 |
| Step Angle Accuracy | ±5% |
| Shaft Type | Round |
| Shipment Weight | 0.7 kg |
| Shipment Dimensions | 6 × 7 × 7 cm |

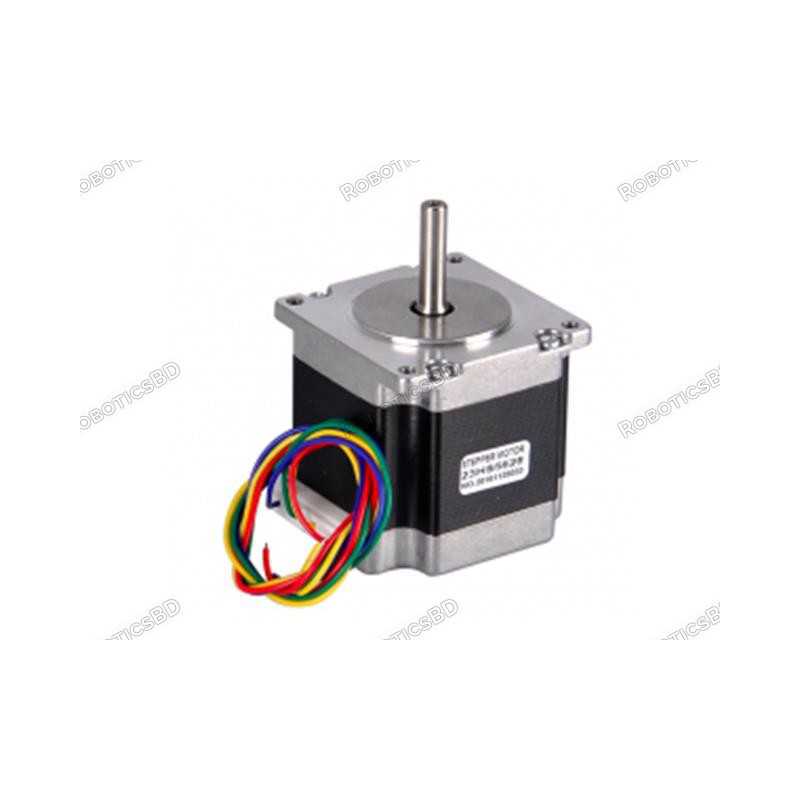

1 x NEMA 23 10.1 kg-cm Hybrid Stepper Motor
The latest price of Nema 23 23HS5628 Stepper Motor in Bangladesh is BDT 2,349 You can buy the Nema 23 23HS5628 Stepper Motor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
