When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned or damaged due to external forces, which could bother you a lot...
Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged. RoboticsBD
After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned. RoboticsBD
| General Specification | |
| Model | 9g 300° |
| Operating Voltage | 4.8-6V DC |
| Quiescent Current | ≤8mA at 6.0V |
| No-load Current | ≤50mA at 4.8V ≤60mA at 6.0V |
| Stall Current | ≤550mA at 4.8V ≤650mA at 6.0V |
| Rated Torque | ≥0.32kgf·cm at 4.8V ≤0.4kgf·cm at 6.0V |
| Stall Torque | ≥1.0kgf·cm at 4.8V ≤1.2kgf·cm at 6.0V |
| Operating Voltage | 300°±10° |
| Pulse Width Range | 500~2500μs |
| Communication Mode | PWM |
| Shipment Weight | 0.017 kg |
| Shipment Dimensions | 12 × 9 × 2 cm |
Please allow 5% measuring deviation due to manual measurement.
Servo Internal Structure
Mechanical Dimensions

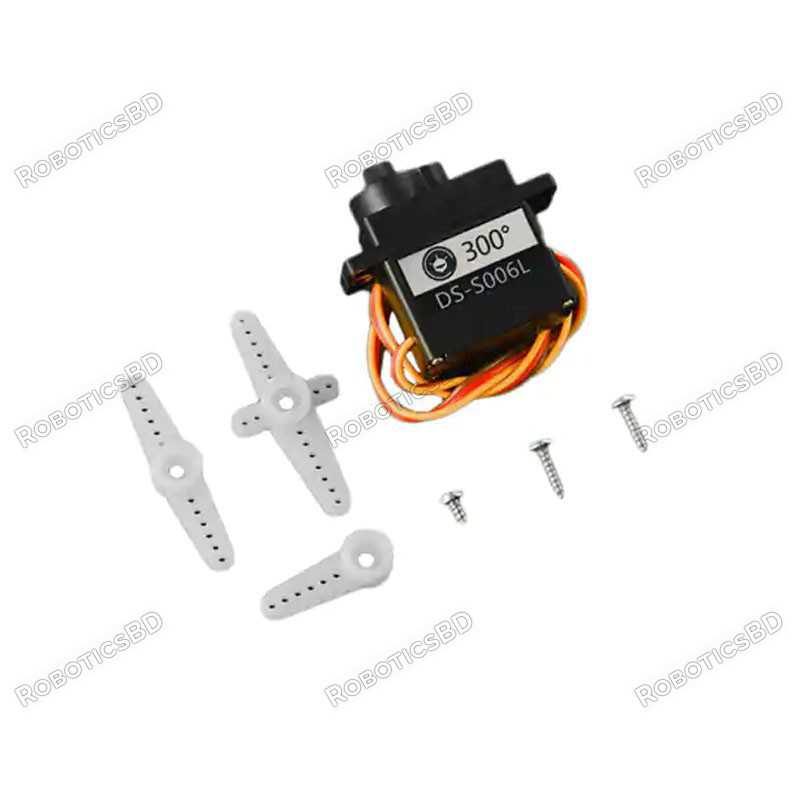

1 x 9g 300° Clutch Servo DFRobot
