Servo Motor MG996R 180 Degree Rotation

RBD-0034
  • Weight: 55g
  • Dimension: 40.7×19.7×42.9mm
  • Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
  • Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
  • Operating voltage: 4.8 ~ 6.6V
  • Gear Type: Metal gear
  • Dead band width: 1us
  • Wire length: 32cm
BDT 445
rating Read the 33 reviews
Average rating: 4.5/5 - Number of reviews: 33
Quantity
In-Stock

127 people have purchased this item in last 12 months
409 people recently added this item to the cart
467 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The MG996R 10kg Servo is a type of motor that is commonly used in robotics and control applications. It is a high-torque servo motor that is capable of delivering up to 10kg of force. The motor is fully metal, meaning that it has a metal casing and gears, which provides durability and strength. The MG996R Servo is widely used in robotic projects such as arms and legs for humanoid robots, remote control vehicles, and model aircraft. It operates using pulse-width modulation (PWM) and is controlled by sending a series of pulses to the motor, which determines the position of the motor shaft. The motor can rotate over a range of approximately 180 degrees, making it ideal for a variety of applications where precise control of motion is required.. Featured By RoboticsBD.

When you purchase TowerPro motors in Bangladesh, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.

Product Images are shown for illustrative purposes only and may differ from the actual product.

This servo motor requires a higher current and cannot be powered directly from the Arduino Uno or Mega. You will need to provide an additional 5V, 3A power supply in conjunction with the Arduino.

Please do not manually rotate the motor or gear shaft by hand, as this could cause permanent damage to the motor.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Gear Type: Metal gear
  2. Servo Plug: JR (Fits JR and Futaba)
  3. Servo arms & screws included, and fit with Futaba servo arm
  4. It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
  5. Upgraded servo gear set and shaft to aluminum 6061-T6. It is stronger and lighter than copper.

Application:

  1. Robotics: Used in the construction of robotic arms, legs, and other robotic components for precise control of movement.
  2. Remote control vehicles: Ideal for controlling the movement of wheels, steering, and other components in remote control cars and boats.
  3. Model aircraft: Used for control of rudder, ailerons, and other control surfaces in model aircraft.
  4. Robotics education: Used in educational robotics kits for hands-on learning and experimentation.
  5. Industrial automation: Used in industrial applications where precise control of movement is required, such as pick-and-place operations and material handling systems.

Wire Description

RED – Positive

Brown – Negative

Orange – Signal

General Specification
Operating Voltage (VDC) 4.8 ~ 6.6
Temperature Range 0- 55℃
Stall Torque @ 4.8V (Kg-Cm) 9.4
Stall Torque @6.6V (Kg-Cm) 11
Operating Speed @4.8V 0.19sec/60°
Operating Speed @6.6V 0.15sec/60°
Dead Bandwidth 1uS
Gear Type Metal
No. of teeth 25
Length (mm) 40.7
Width (mm) 19.7
Height (mm) 42.9
Weight (gm) 55
Shipment Weight 0.059 kg
Shipment Dimensions 5 × 3 × 5 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Operating voltage: Ensure that the servo is operated within the specified voltage range.
  2. Operating current: Ensure that the servo is not subjected to excessive current, which can damage the motor.
  3. Load capacity: Do not exceed the specified load capacity of the servo, as this can cause damage or reduce its life span.
  4. Environmental conditions: Ensure that the servo is used within the specified temperature and humidity range.
  5. ESD protection: Implement proper electrostatic discharge (ESD) protection to prevent damage to the servo.

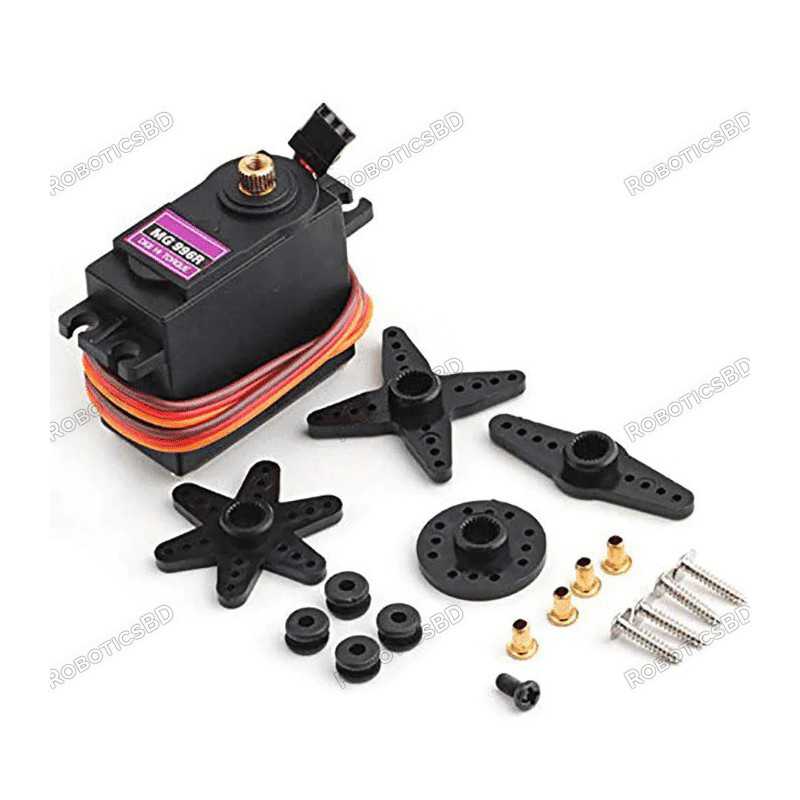

Package Includes:

1 x MG996R Digital High Torque Servo Motor and Accessories Parts(as shown in the image)

What is the price of Servo Motor MG996R 180 Degree Rotation in Bangladesh?

The latest price of Servo Motor MG996R 180 Degree Rotation in Bangladesh is BDT 445 You can buy the Servo Motor MG996R 180 Degree Rotation at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-0034
467 Items
Review
rating
04/01/2025
Dipu Roy
Nice
Mg 996R
rating
05/10/2024
Noshin
Good
Good Quality
rating
09/07/2024
Md. Firoz Alam
Good Quality
Servo
rating
02/07/2024
Md. Najmul Hasan Sujon
Nice Product, recommended
Good
rating
16/11/2023
Shafiq
Good
nice
rating
04/11/2023
Utso
nice
⭐⭐⭐⭐⭐
rating
03/11/2023
Abid Anjam\r\n
⭐⭐⭐⭐⭐
Mg996r
rating
16/09/2023
Abid Hasan Rifat
Product was absolutely fine
As expected
rating
14/08/2023
Ali Ahnaf
As expected
Motor
rating
20/07/2023
Abdullah Al Nayeem
Good and authentic products
MG996R 10kg Servo (Fully Metal)
rating
06/07/2023
Saif Islam
gd
Servos description was misleading
rating
05/03/2023
Ahmed Rafid
Description told it had 120° rotation, I ordered 4 of these, 3 of them turned out to be continuous rotating servos
Nice
rating
27/12/2022
Arfanul Kabir Apurbo
Nice
product review
rating
10/12/2022
Rahat Akhand
quality full product with great concern
Thanks for this awesome servo Motor
rating
27/10/2022
Hasi
Thanks for this awesome servo Motor
Good
rating
12/07/2022
Md. Rakibul Hasan
Good
Great
rating
17/12/2021
Abdullah Ali Munawar
Just perfect
Good
rating
01/10/2021
Shetu
Good
Nosto product
rating
03/04/2021
Mithul
Ekta valo silo but otao accuracy valona\r\n
Good
rating
26/12/2020
Ahnaf Daiyan
Good
Good value for the price
rating
03/09/2020
Sahdin Khan
I can\'t expect more at this price. It\'s absolutely fine for the price.
Average
rating
16/06/2020
Jawadul Karim
Faced problem at first but its working fine
Could be better
rating
27/05/2020
Adit
Needs improvement
P
rating
25/05/2020
Akramul hoque
Good
Good
rating
26/04/2020
Avijit
Good
MG996R 10kg Servo (Fully Metal)
rating
24/03/2020
Nasif Mahmud
Good
Yo
rating
10/03/2020
Anonymox
I get the product
Moderate
rating
20/02/2020
Towhidul
Moderate
Servo
rating
18/10/2019
Asib
Good product
Parts missing
rating
29/09/2019
Takrim hussain
i didn\'t get plastic horn and scru with two servo
Nosto Servo
rating
14/06/2020
Jawadul Karim

Kono vabei servo ghure na. Just ekta humming sound hoi.. Customer ekta 424 tkar motor order korte pare but apnara seta deoar age ektu check koreo nite paren na. Email e somosha janalam, no reply. Messenger e msg seen kore rekhe disen. Reply ar korben e keno, kena to hoyei gese ar reply diye labh nai. Evabe business kore apnara ki expect koren je customer abar kinte asbe apnader theke. Apnader servie je "cash on delivery" er ag porjonto thake eta bujhe gesi. Thanks for nothing.

Answer:
It is not getting enough power.
You can not power this servo from Arduino Nano over USB. You have to use a separate power supply of 5V, 2A.
The PC USB port only provides 100mA and this servo requires 900mA to run. Please check the attached file.
We do not manufacture this servo. We import it from China there is no point for a manufacturer for selling defective products.
Please check your connection again.
Due to COVID-19, We do not have enough employees to reply to all messages in time.
Great servos
rating
25/06/2019
Mashur More
Very agile and accurate
The servo struggles at either
rating
23/06/2017
Nishan P.
The servo struggles at either end and when using with Arduino servo library mind that this servo does not have the same pulse range. So some calibration might be necessary. But for the price it works OK.
