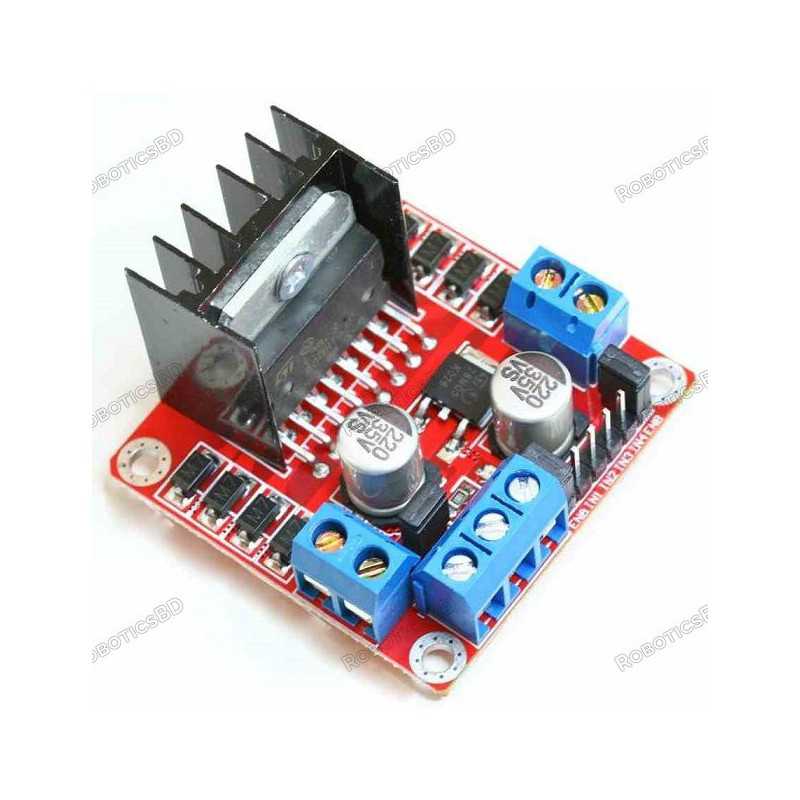

L298N 2A Based Motor Driver is a high power motor driver perfect for driving DC Motors and Stepper Motors
It uses the popular L298 motor driver IC and has an onboard 5V regulator which it can supply to an external circuit. It can control up to 4 DC motors, or 2 DC motors with directional and speed control. RoboticsBD
This motor driver is perfect for robotics and mechatronics projects and perfect for controlling motors from microcontrollers, switches, relays, etc. Perfect for driving DC and Stepper motors for micro mouse, line following robots, robot arms, etc. RoboticsBD
Connection Diagram
Usage:
H-bridges are typically used in controlling motors speed and direction but can be used for other projects such as driving the brightness of certain lighting projects such as high powered LED arrays.
Pins Details
Out 1: Motor A lead out
Out 2: Motor A lead out
Out 3: Motor B lead out
Out 4: Mo (Can actually be from 5v-35v, just marked as 12v)
GND: Ground
5v: 5v input (unnecessary if your power source is 7v-35v, if the power source is 7v-35v then it can act as a 5v out)
EnA: Enables PWM signal for Motor A (Please see the “Arduino Sketch Considerations” section)
In1: Enable Motor A
In2: Enable Motor A
In3: Enable Motor B
In4: Enable Motor B
EnB: Enables PWM signal for Motor B (Please see the “Arduino Sketch Considerations” section) RoboticsBD
Features:
- Maximum motor supply current: 2A per motor.
- Current Sense for each motor.
- Heatsink for better performance.
- Power-On LED indicator.
- Double H bridge Drive Chip: L298N. RoboticsBD
| General Specification |
| Driver Model |
L298N 2A |
| Operating Voltage (VDC) |
5 ~ 35 |
| Peak Current (A) |
2 |
| Continuous Current (A) |
0-36mA |
| No. of Channels |
2 |
| Over-Current Protection (A) |
Yes |
| Thermal Protection |
Yes |
| LED Indicator |
Yes |
| Cooling Fan |
No |
| Arduino Sheild |
No- can be used with Wire connection |
| Dimensions in mm (LxWxH) |
44 x 44 x 28 |
| Weight (gm) |
25 |
| Max power |
25W. |
| Shipment Weight |
0.03 kg |
| Shipment Dimensions |
7 × 7 × 3 cm |
Documentation:
- Interface L298N DC Motor Driver Module with Arduino (lastminuteengineers)
Package Includes :
1 x L298N H-Bridge Dual Motor Driver, Stepper Motor Driver
What is the price of L298N H-Bridge Dual Motor Driver, Stepper Motor Driver in Bangladesh?
The latest price of L298N H-Bridge Dual Motor Driver, Stepper Motor Driver in Bangladesh is BDT 195 You can buy the L298N H-Bridge Dual Motor Driver, Stepper Motor Driver at best price from our RoboticsBD or visit RoboticsBD Office.
|
