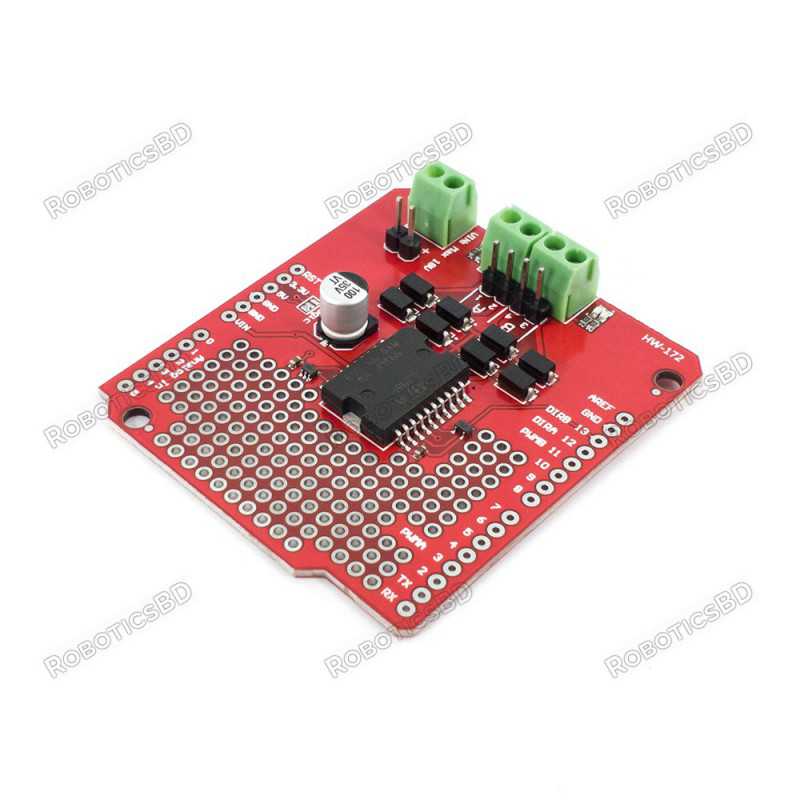

Ardumoto Shield L298P Motor Driver
  • Ardumoto Shield L298P Motor Driver

Ardumoto Shield L298P Motor Driver

RBD-0392
  • L298P based Arduino motor driver shield
  • Forward, Backward steering indicators
  • Can Drive 2 DC Motors
  • Up to 2A of Maximum Current. RoboticsBD
BDT 699
Quantity
In-Stock

3 people have purchased this item in last 12 months
6 people recently added this item to the cart
14 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

This is a motor shield for Arduino that can control two DC motors. Based on the L298P, the motor driver shield can drive up to 2 amps per channel. The board takes its power from the same Vin line as the Arduino board, includes blue and yellow LEDs to indicate active direction, and all driver lines are diode protected from back EMF. The new version of this shield allows for either 3.3 or 5v logic, a separate and more robust VIN connection, and the PWM input has moved to pin 3. Control for motor attached to OUT1/2 is connected to digital line 12 (direction A) and digital line 3 (PWM A). Control for motor attached to OUT3/4 is connected to digital line 13 (direction B) and digital line 11 (PWM B). RoboticsBD

Features:

  1. A convenient motor interface can be divided into two motor outputs. RoboticsBD
  2. Forward and Backward steering are indicators.
  3. Extra Soldering Points for Prototyping.
  4. Maximum Supply Voltage: 18V

General Specification
Logic Part Input Voltage 5VDC
Drive Part of the Input Voltage 6.5 ~ 12VDC
Drive Part of the Operating Current 2A
Maximum Dissipation Power 25W
Length (mm) 57
Width (mm) 53
Height (mm) 13
Weight (gm) 19
Shipment Weight 0.022 kg
Shipment Dimensions 7 × 5 × 3 cm

Package Includes:

1  x Ardumoto Shield L298P Motor Driver

What is the price of Ardumoto Shield L298P Motor Driver in Bangladesh?

The latest price of Ardumoto Shield L298P Motor Driver in Bangladesh is BDT 699 You can buy the Ardumoto Shield L298P Motor Driver at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
