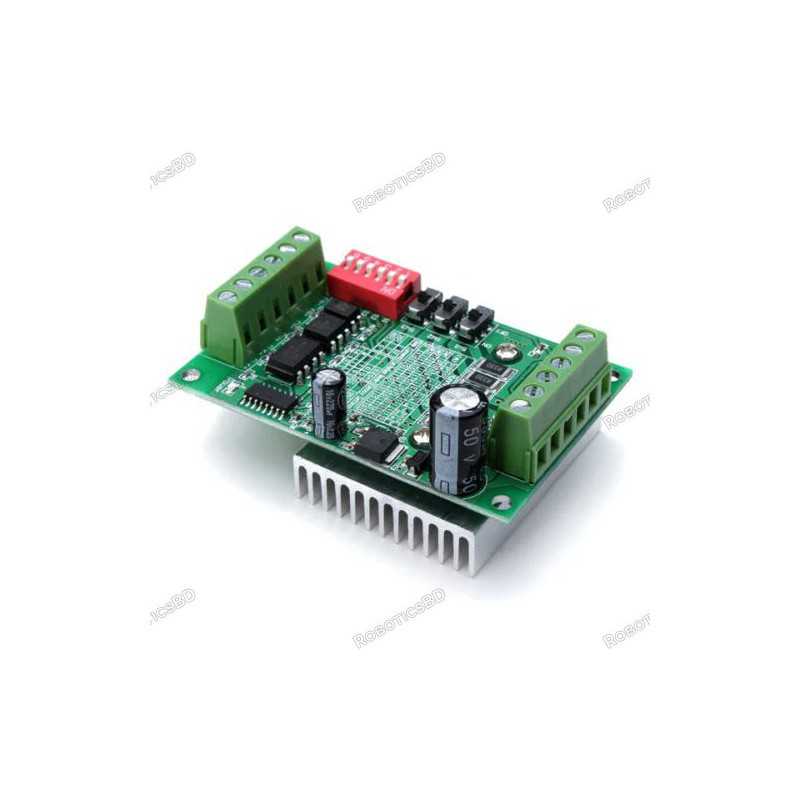

TB6560 Single Axis 3A Stepper Motor Driver Board

RBD-2158
  1. Driver Chip: TB6560AHQ
  2. Operating Voltage: 10-35V
  3. Nominal Voltage: 24V
  4. With the large heat sink to ensure good heat dissipation
  5. 6N137 high-speed OptoCoupler, to ensure a high speed without step out.
BDT 780
rating Read the review
Average rating: 5/5 - Number of reviews: 1
Quantity
In-Stock

4 people have purchased this item in last 12 months
13 people recently added this item to the cart
17 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.

It is very easy to use requires no special instructions. The module features Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function.

This stepper motor driver is featuring TB6560AHQ new original chip. The TB6560AHQ has low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.

The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2 phase motor (10 – 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications or precision mechanical systems. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. Current level by adjustable to meet your various application requirements.
  2. Automatic semi-flow adjustable.
  3. Using 6N137 high-speed optical coupling to ensure high speed without losing a step.
  4. Board printed setup instructions.
  5. Using thick fine-toothed radiator, good heat dissipation.
  6. For 42,57,86 Stepper within 3A  2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  7. Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  8. Automatic half-decay.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 10 to 35
Nominal Voltage (V) 24
Driver IC TB6560AHQ
Rated Output Current (A) 3
Length (mm) 50
Width (mm) 75
Height (mm) 35
Weight (gm) 72
Shipment Weight 0.078 kg
Shipment Dimensions 6 × 8.5 × 4.5 cm

Please allow 5% measuring deviation due to manual measurement.
