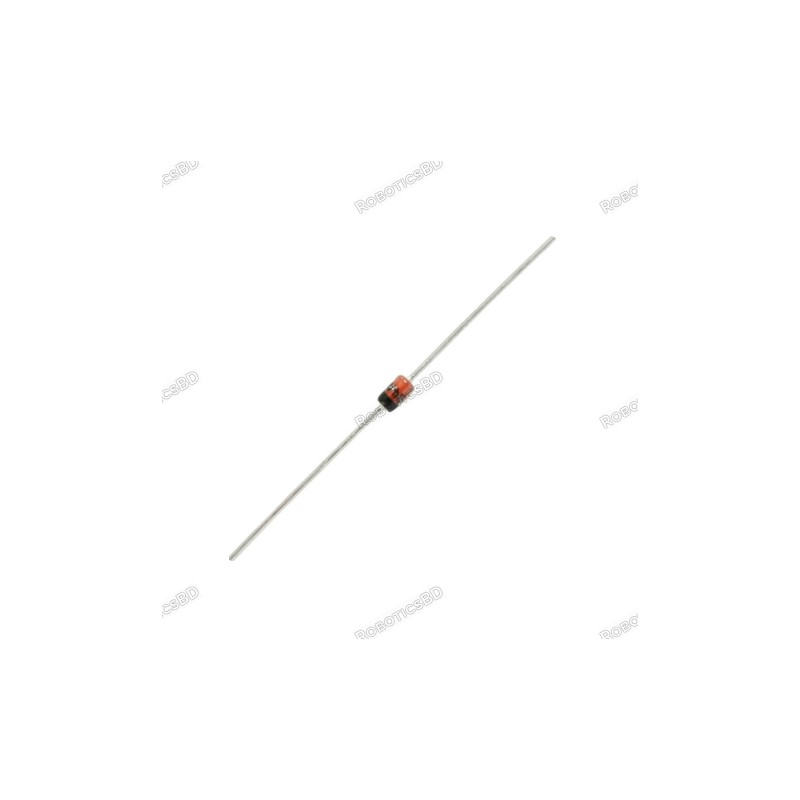

Zener Diode 3.3V
RBD-1361
- Zener Voltage Range (V): 3.1 – 3.5
- Reverse Leakage Current (μA): < 0.1
- Storage Condition: -65 to 175°C
-
Store Pickup Available!
-
Free Ship Over 5000 BDT
-
Quality Product
-
No Warranty
-
No Replacement
A Zener diode is another form of diode, but is used for entirely different purpose. They are mainly used in protection circuits or as crude voltage regulators. Let us see how we can select one for your application. RoboticsBD
There are two main parameters that are to be checked while selecting a Zener diode. One is the Zener Voltage and the other is Power dissipation. The Zener voltage is the voltage which appears across the Zener diode when a higher reverse potential voltage is applied to it. In regulator circuits it is this voltage (Zener voltage) which will be regulated and in protection circuit it is this voltage (Zener voltage) more than which the circuit is protected. The power dissipation decides the amount of current that can flow through the diode. Higher the power dissipation higher the current can flow. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Used in Voltage protection circuits
- Can be used as low current voltage regulator
- Input voltage protection for Microcontrollers or other ICs Voltage stabilizing circuits
Features:
- Nominal Zener Voltage (VZ): 3.3V
- Power dissipation (PZ): 500mW
- Zener current (IZT): 76mA
- Package: DO-35
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Power dissipation (W) | 1 |
| Z-current mA | Pv/Vz |
| Junction temperature (°C) | 200 |
| Storage temperature range (°C) | -65 to +175 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1N4728A Equivalent Zener Diodes: 4.7V Zener, 5.1V Zener, 6.8V Zener, 7.5V Zener, 15V Zener
Documentation:
Package Includes:
1 x Zener Diode 3.3V
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
What is the price of Zener Diode 3.3V in Bangladesh?
The latest price of Zener Diode 3.3V in Bangladesh is BDT 2 You can buy the Zener Diode 3.3V at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
