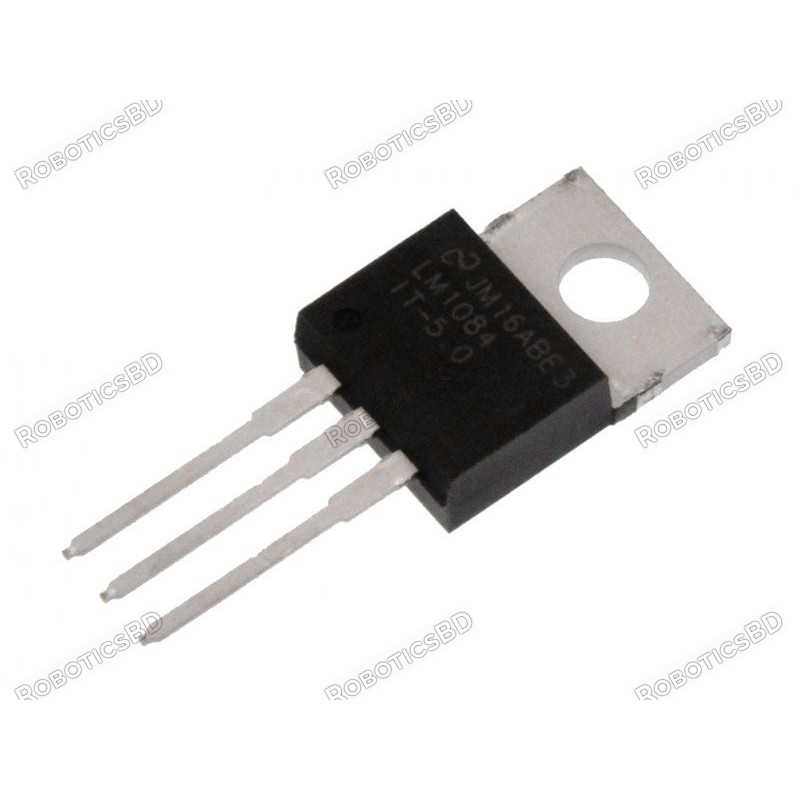

The LM1084 is a series of low dropout voltage positive regulators with a maximum dropout of 1.5V at 5A of load current. It has the same pin-out as National Semiconductor’s industry standard LM317. RoboticsBD
The LM1084 is available in an adjustable version, which can set the output voltage with only two external resistors. It is also available in three fixed voltages: 3.3V, 5.0V and 12.0V. The fixed versions intergrate the adjust resistors. RoboticsBD
The LM1084 circuit includes a Zener trimmed bandgap reference, current limiting and thermal shutdown. The LM1084 series is available in TO-220 and TO-263 packages. Refer to the LM1085 for the 3A version, and the LM1086 for the 1.5A version.
| General Specification | |
| Package/Case | TO-220 |
| Minimum Output Voltage (V) | 3.270 |
| Maximum Output Voltage (V) | 3.365 |
| Product Type | LM10845A Low Dropout Positive Regulators |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
1 x LM1084 5A Low Dropout Positive Regulator
The latest price of LM1084 5A Low Dropout Positive Regulator in Bangladesh is BDT 35 You can buy the LM1084 5A Low Dropout Positive Regulator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
