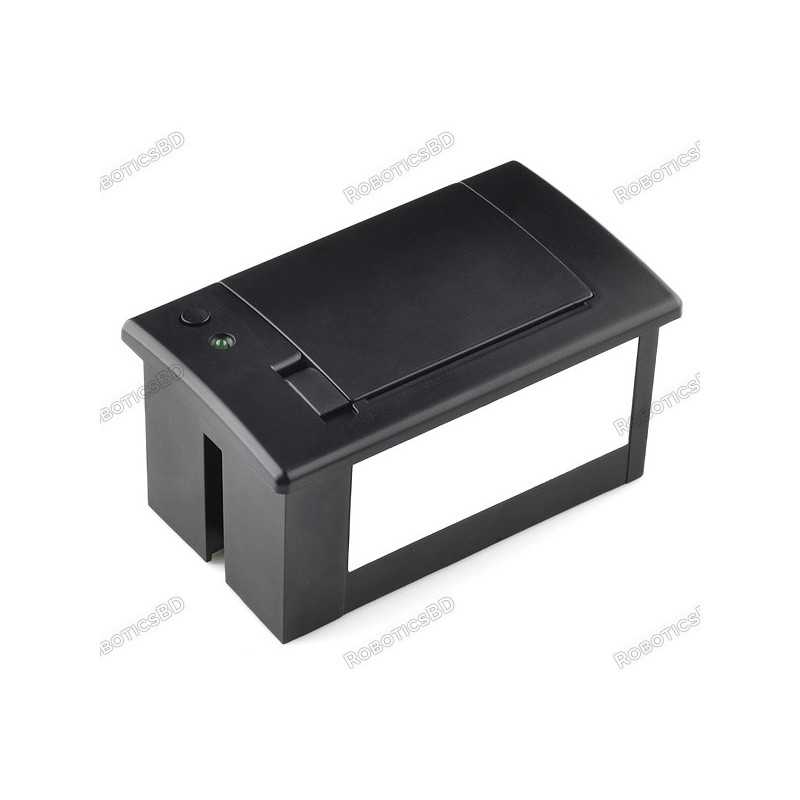

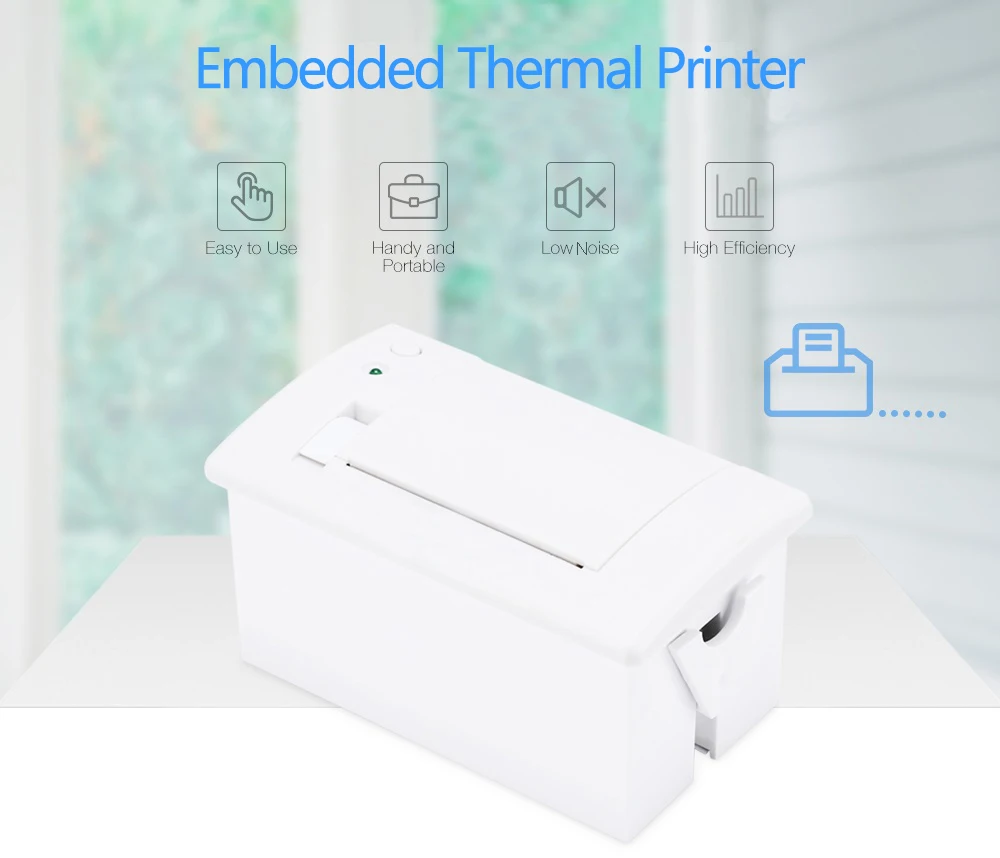

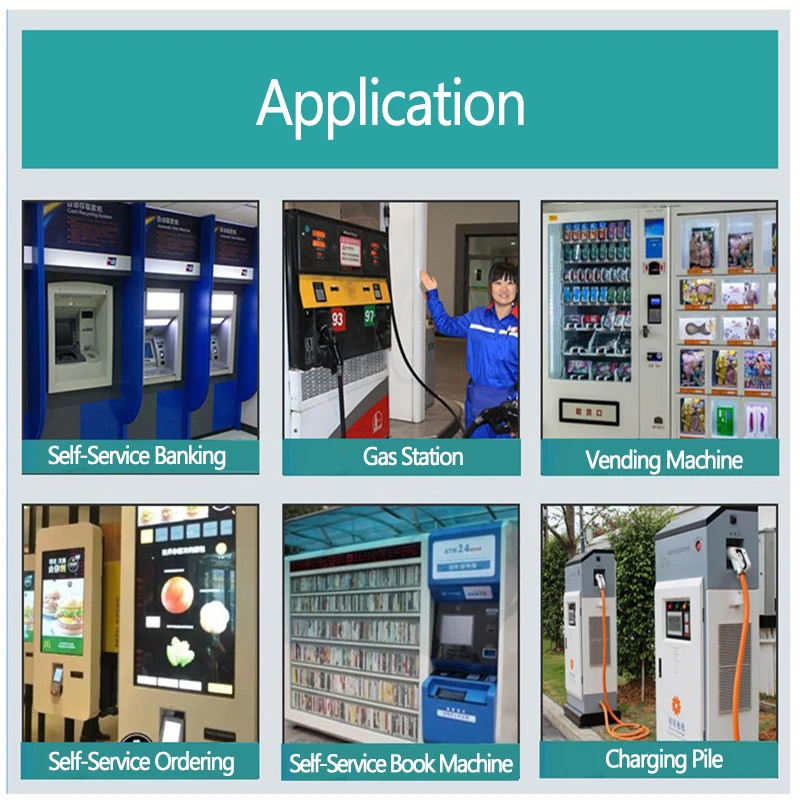

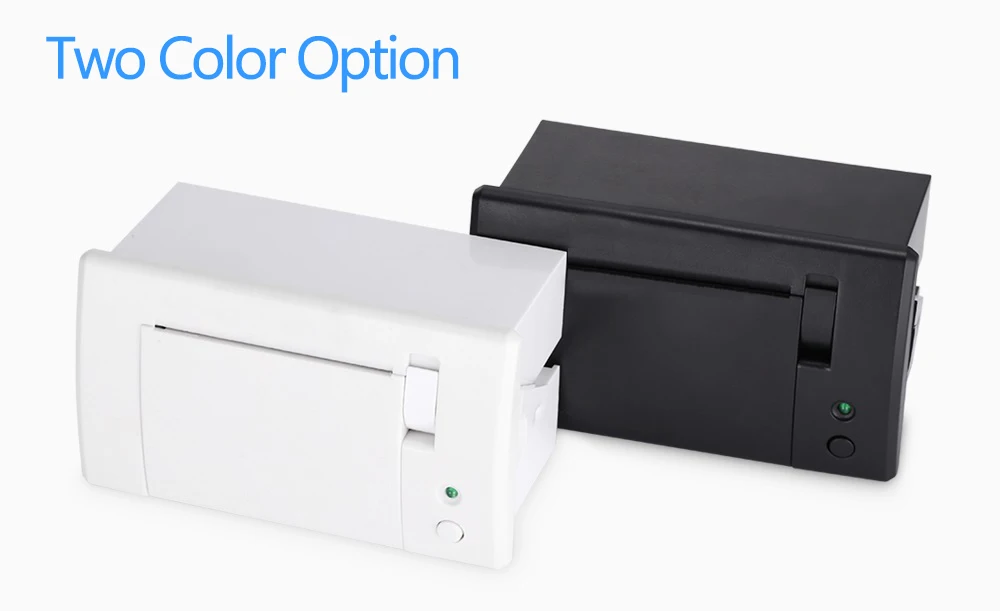

This embedded receipt thermal printer TTL is compact, simple, and cost-effective. With excellent connectivity, it is widely used in shopping malls, supermarkets, hospitals, restaurants, banks, gas stations, road and bridge toll station. Easy to set up and operate, it will work perfectly with your devices, make printing more convenient than before.
Note: Customers who purchase embedded printers, must have a certain basic knowledge of electronic programming. The printer is only provided product descriptions and tool, no technical consulting support, please be careful for beginners.
| General Specification | |

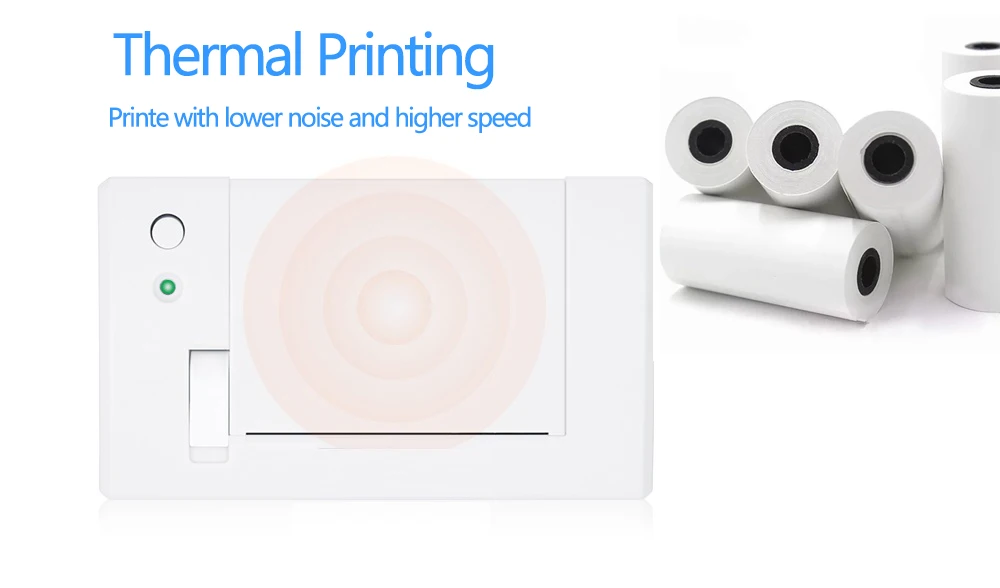

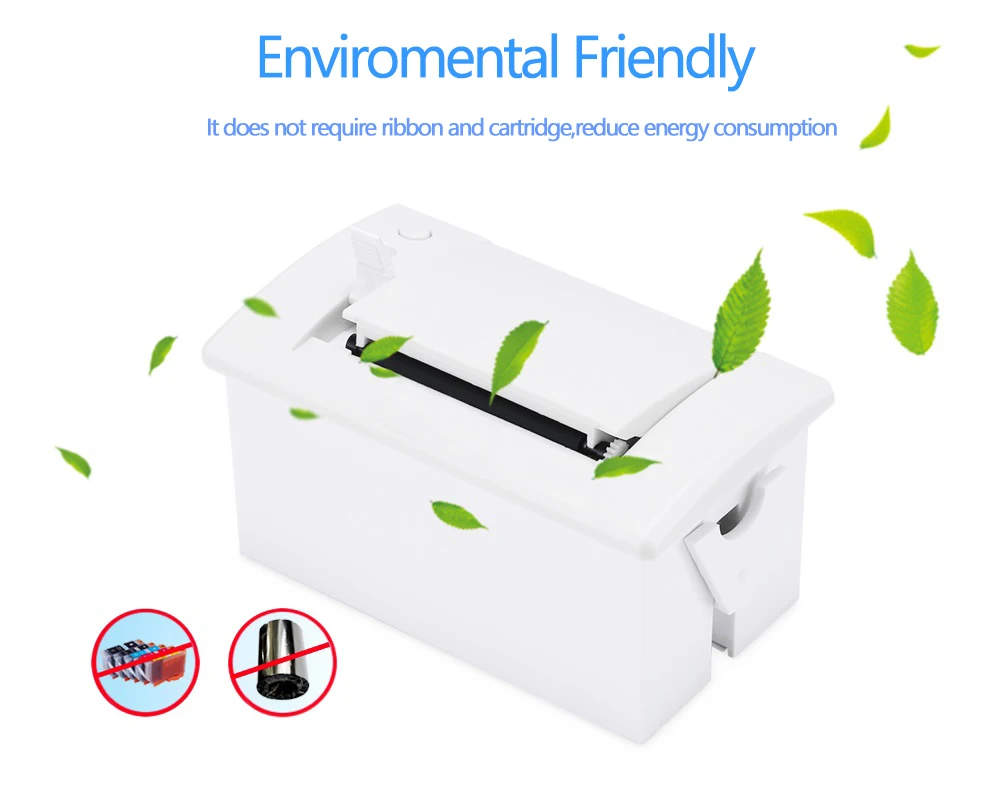

| Printing method: | Thermal dot printing |

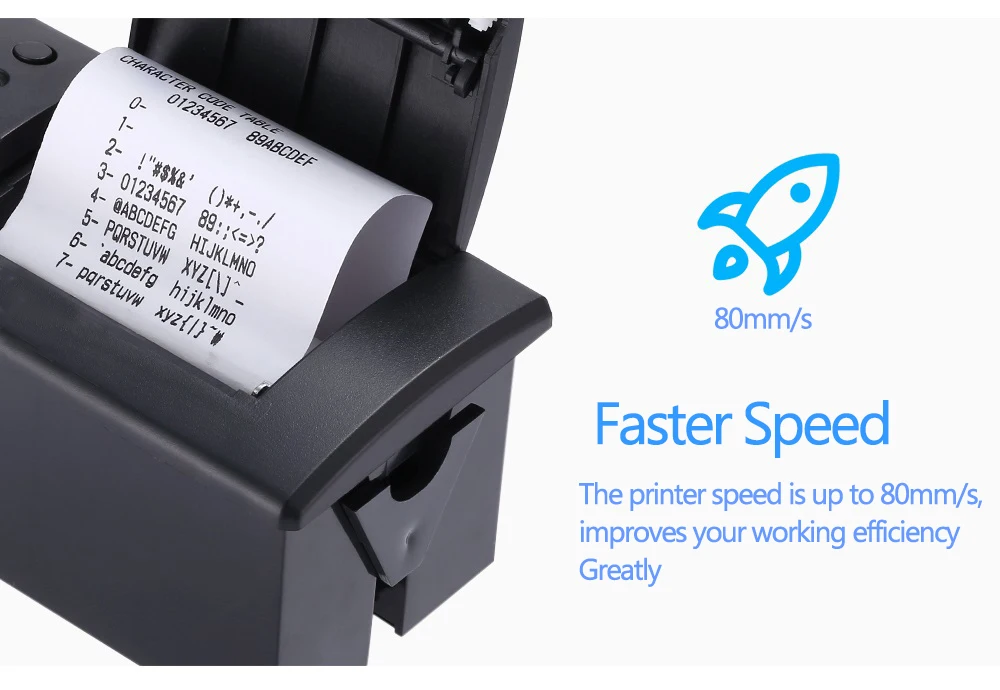

| Printing speed: | 50 - 80mm/s |
| Resolution: | 8 points/mm, 384 points/line |
| Effective print width: | 48mm |
| Character set: | ASCII, GB2312-80 (Chinese) |
| Print font: ANK: | 8 x 16, 9 x 17, 9 x 24, 12 x 24 |
| Paper type: | Thermal paper 57 x 30 |
| Paper width: | 57.5 +/- 0.5mm |
| Roll diameter: | 39mm (max.) |
| Interface: | Serial TTL/RS232 |
| Embed depth: | 50mm |
| Power: | DC 5V - 9V |
| Mounting port size: | 103 x 57mm |
| Operating temperature: | 5 Deg.C - 50 Deg.C |
| Working humidity: | 10 percent to 80 percent |
| Storage temperature: | -20 Deg.C - 60 Deg.C |
| Storage humidity: | 10 percent to 90 percent |
| Product weight: | 0.1700 kg |
| Package weight: | 0.1770 kg |

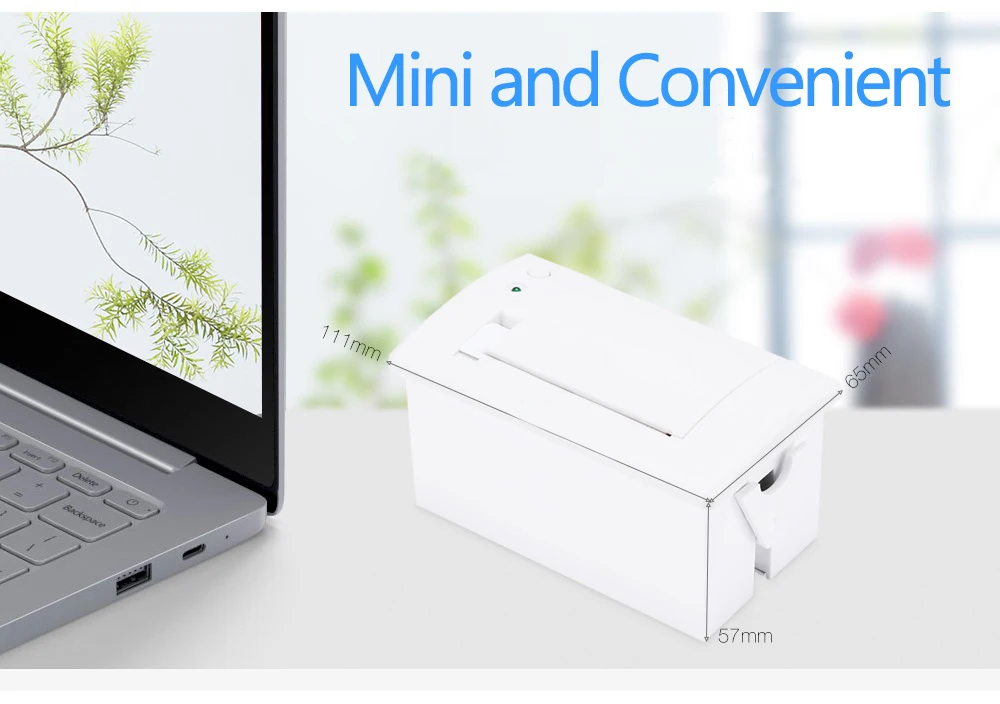

| Product Size | 11.10 x 6.50 x 5.70 cm |
| Shipment Weight | 0.1770 kg |
| Shipment Dimensions | 15.00 x 13.70 x 8.20 cm |
1x Thermal Printer
1x Thermal Paper Roll (Inside)
1x Cable
The latest price of QR701 58mm Embedded Receipt MIni Thermal Printer in Bangladesh is BDT 3,790 You can buy the QR701 58mm Embedded Receipt MIni Thermal Printer at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-0329
