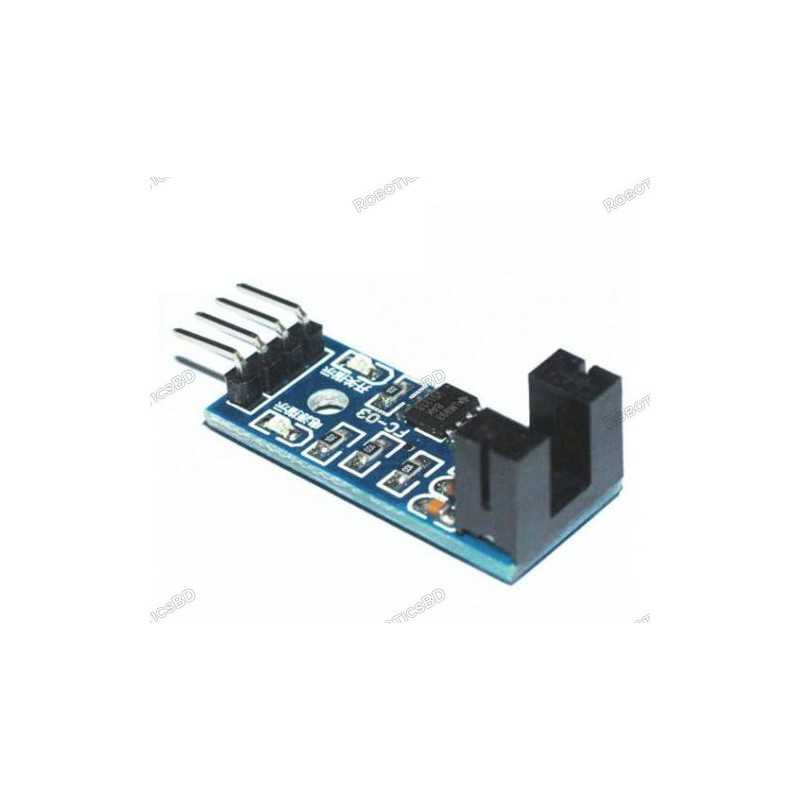

The Speed Measuring Sensor Groove Coupler Module is a device used to measure the rotational speed of a shaft or axle. It is typically used in combination with an Arduino microcontroller to provide an accurate measurement of speed. The module consists of a sensor, typically a photointerrupter or a Hall Effect sensor, that is mounted in a coupler, which fits over the shaft or axle to be measured. As the shaft rotates, the sensor detects changes in light or magnetic field, and generates a signal that can be used to calculate the speed of the shaft. This information can then be used in a variety of applications, such as motor control, robotics, or data logging. The Groove Coupler Module is an easy to use and affordable solution for measuring rotational speed, making it a popular choice for hobbyist and educational projects.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Feature :
- Using imported groove optical coupling sensor, width 5mm.
- It has the output state light, if output high level, the lights are off. if output low level, it on.
- If it covered, it will output high level; otherwise, its output low level.
- Good signal and waveform, with a strong driving ability for more than 15mA.
- Equipped with a fixed bolt hole, easy install.
- Use the LM393 wide voltage comparer.
- The DO output interface can be directly connected to a micro-controller IO port if there is a block detection sensor, such as the speed of the motor encoder can detect.
- DO modules can be connected to the relay, limit switch, and other functions, it can also with the active buzzer module, compose alarm.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Application :
- Motor control: Can be used to monitor and control the speed of motors in applications such as robots, automation systems, or hobby projects.
- Data logging: Can be used to measure and record rotational speed data for analysis and monitoring.
- Robotics: Can be used to measure and control the speed of robotic actuators and to provide feedback for closed-loop control.
- Machine control: Can be used in industrial applications to measure and monitor the speed of machinery for process control and maintenance purposes.
- Education: Can be used in educational projects to demonstrate the principles of rotational speed measurement and control.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Wiring Specification :
- VCC: The positive 3.3-5 v power supply.
- GND: Connect power negative.
- DO: TTL switch signal output.
- AO: This is analog output.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Operating Voltage (VDC) |
3.3 ~ 5 |
| Length (mm) |
32 |
| Width (mm) |
14 |
| Height (mm) |
13 |
| Weight (gm) |
2 |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
5 × 4 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Power supply voltage: Ensure that the module is powered within the specified voltage range to avoid damage.
- Shaft size: Ensure that the module is used with a shaft of the correct size to ensure proper coupling and accurate measurement.
- Interference: Be aware of other devices that may cause electromagnetic interference and avoid operating the module in close proximity to such devices.
- Installation: Ensure that the module is properly installed and tightened to prevent slippage or damage to the sensor or shaft.
- Environmental conditions: Ensure that the module is used within its specified operating temperature range and protected from moisture or other environmental conditions that may cause damage or affect performance.
Package Includes :
1 x Smart Speed Detecting Sensor for Arduino
