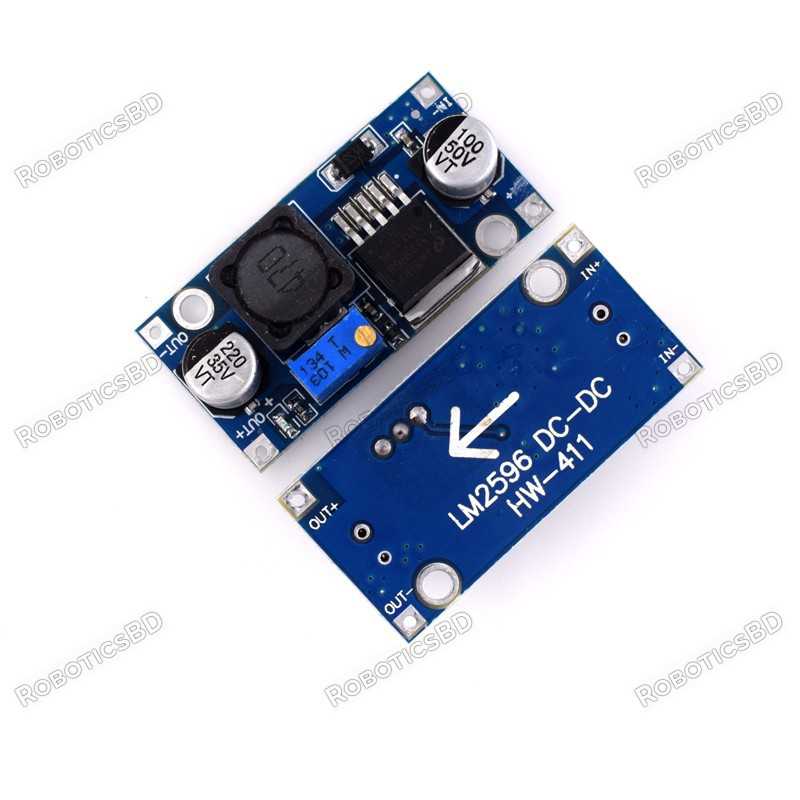

It is LM2596 DC-DC Buck Converter with voltage rating 4.5-40V to 3-35V. This step down power module is adjustable with a potentiometer. RoboticsBD
| General Specification | |
| Input Voltage (V) | 4 ~ 35 VDC |
| Output Voltage(V) | 3 ~ 35 |
| Max. Output Current (A) | 3 |
| Conversion efficiency | 92%(highest) |
| Switching frequency | 150 KHz |
| Output ripple | 30mA (maximum) |
| Load Regulation | ± 0.5% |
| Voltage Regulation | ± 0.5% |
| Dynamic Response speed | 5% 200uS |
| Operating Temperature (°C) | -40 to 90 |
| PCB Size ( L x W ) mm | 40 x 20 |
| Shipment Weight | 0.095 kg |
| Shipment Dimensions | 9 × 7 × 5 cm |
1 x LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter
The latest price of HW-411A LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter in Bangladesh is BDT 99 You can buy the HW-411A LM2596 DC-DC Step Down Adjustable Power Supply Module 3A Max Buck Converter at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-0562
