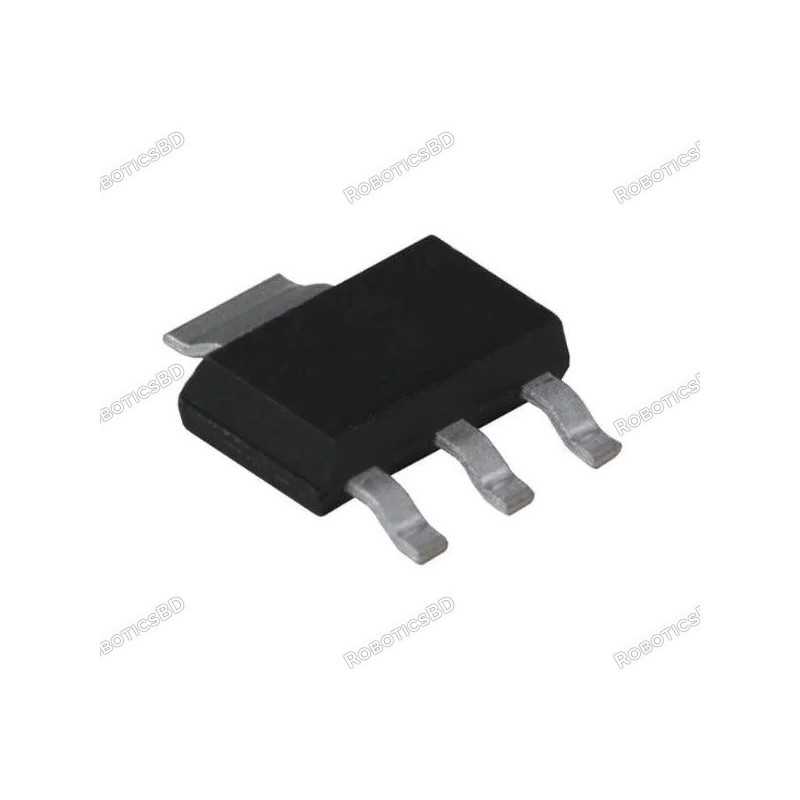

AMS1117-3.3V, 1A, SOT-223 Voltage Regulator IC is a series of low dropout three -terminal regulators with a dropout of 3.3V at 1A load current. AMS 1117 features a very low standby current 2mA compared to 5mA of a competitor. Other than a fixed version, Vout = 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V, and 12V, AMS1117 has an adjustable version, which can provide an output voltage from 1.25 to 12V with only two external resistors. Featured By RoboticsBD.
AMS 1117 offers thermal shut down and current limit functions, to assure the stability of chip and power system. And it uses a trimming technique to guarantee output voltage accuracy within 2%. Other output voltage accuracy can be customized on demand, such as 1% Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
| General Specification | |
| Package/Case | SOT-223 |
| Mounting Type | SMD/SMT |
| Product Series | AMS1117 |
| No. of Output | 1 |
| Output Type | Fixed |
| Polarity | Positive |
| Input Voltage Range | 1.8V- 15V DC |
| Output Voltage(V) | 3.3 |
| Max. Output Current (A) | 1 |
| Operating Temperature Range (°C) | -24 to 84 |
| Load Regulation | 0.4% Max |
| Line Regulation | 0.2% Max |
| Dimensions in mm (LxWxH) | 6.34 x 3.44 x 1.61 |
| Shipment Weight | 0.1 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x AMS1117-3.3V, 1A, SOT-223 Voltage Regulator IC
The latest price of AMS1117-3.3V, 1A, SOT-223 Voltage Regulator IC in Bangladesh is BDT 49 You can buy the AMS1117-3.3V, 1A, SOT-223 Voltage Regulator IC at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
