The L78M12CV is a three-terminal positive Voltage Regulator with several fixed output voltages, making it useful in a wide range of applications. This regulator can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, resulting it essentially indestructible. If adequate heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
| General Specification | |
| Output Voltage | 12 V |
| Maximum Output Current | 1.5A |
| Package Type | TO-220 |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Maximum Input Voltage | 40 V |
| Pin Count | 3 |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | #ERROR! |
| Number of Outputs | 1 |
| Polarity | Positive |
| Typical Dropout Voltage @ Current | 2 V @ 1 A |
| Quiescent Current | 8mA |
| Dropout Voltage Measurement Current | 1 A |
| Width | 4.6mm |
| Dimensions | 10.4 x 4.6 x 15.75mm |
| Load Regulation | 240 mV |
| Series | L78xx |
| Height | 15.75mm |
| Length | 10.4mm |
| Line Regulation | 240 mV |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |

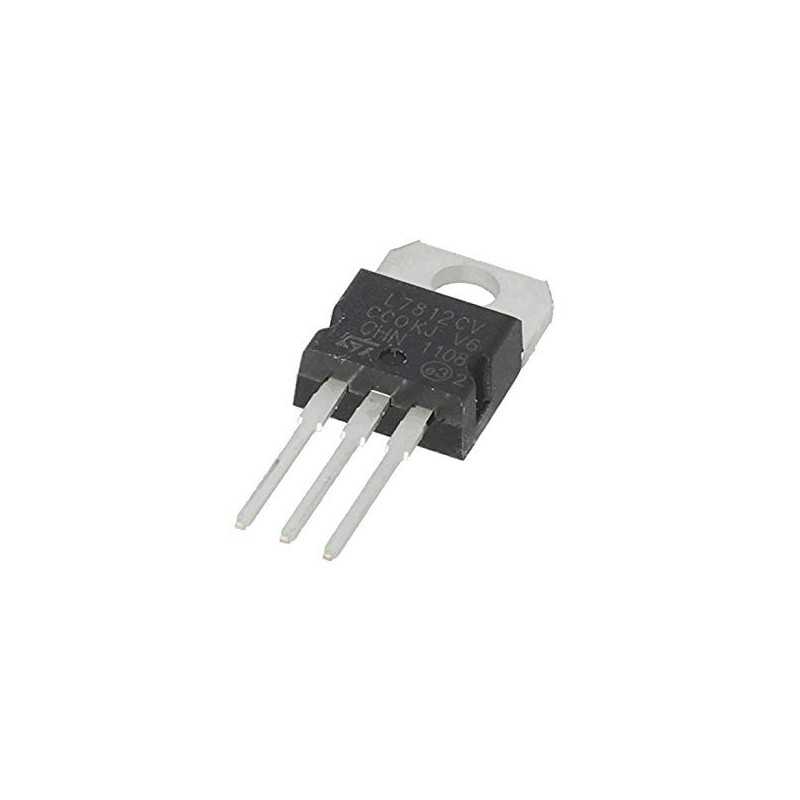

1 x L78M12CV (L7812CV) TO-220 Linear Voltage Regulator
The latest price of L7812CV Linear Voltage Regulator in Bangladesh is BDT 10 You can buy the L7812CV Linear Voltage Regulator at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
