The L78xx series of three-terminal positive regulators is available in TO-220, TO-220FP, TO3, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. RoboticsBD
These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents. RoboticsBD
| General Specification | |
| Package/Case | PDIP-3 |
| Minimum Supply Voltage (V) | 32 |
| Maximum Supply Voltage (V) | 35 |
| Product Type | L78xx L78xxC L78xxAB L78xxAC Positive voltage regulator ICs |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |

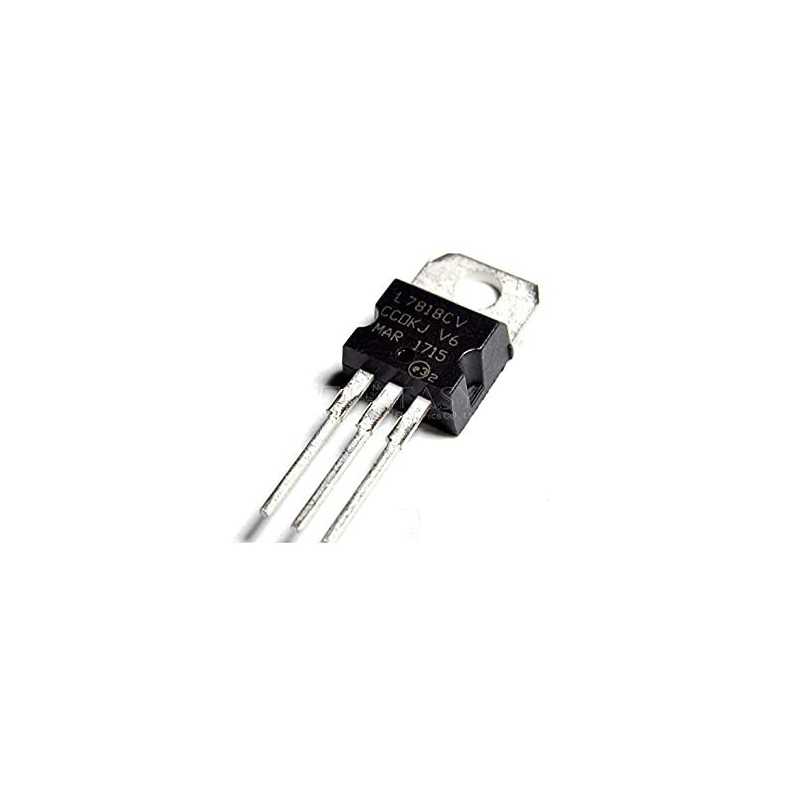

1 x L7818CV
The latest price of L7818CV in Bangladesh is BDT 15 You can buy the L7818CV at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-1002
