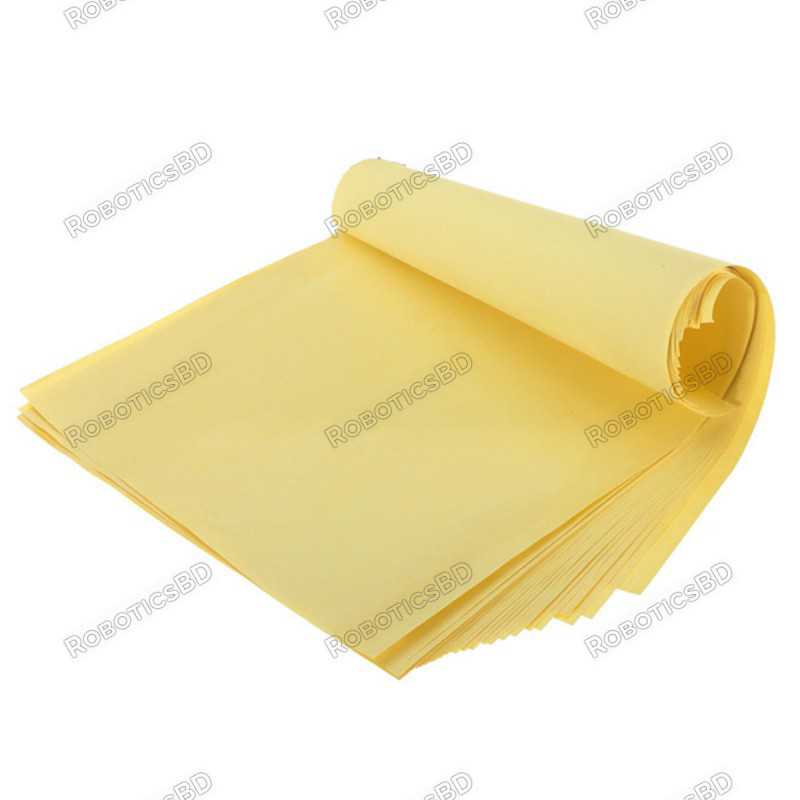

You can print your PCB on this paper with laser printer (don't use inkjet).This paper helps the ink bond with copper easily with heat and little bit pressure then you can process your PCB. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: You can use the laser printer! Can not use inkjet printer.
Remove the white paper, laser printer (or copier) to the PCB map, hit the smooth side, apply to the copper, and iron into the machine or rapid transfer to plate. DIY Transfer Paper (fan-made high-precision electronic circuit board must have the material).
| General Specification | |
| Material | Toner Paper for Ink transfer |
| Length (mm) | 210 |
| Width (mm) | 297 |
| Applied Heat | 150-180 degrees Celsius |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 1-3cm measuring deviation due to manual measurement.
1 x A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype
The latest price of A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype in Bangladesh is BDT 15 You can buy the A4 Size Sheet Toner Transfer Paper For DIY PCB Electronic Prototype at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
