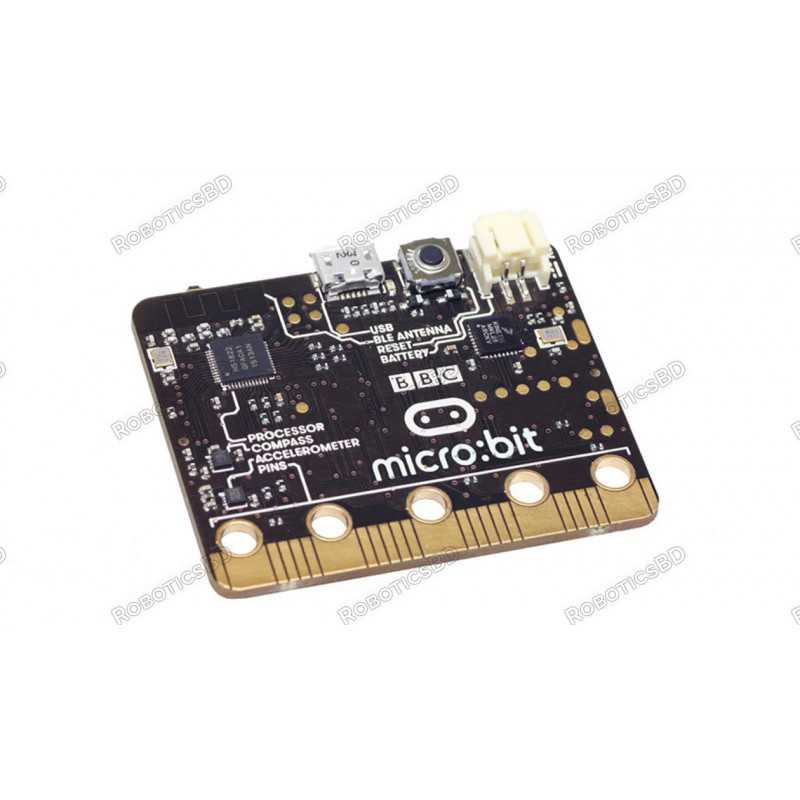

The BBC Micro Bit is an open-source hardware ARM-based embedded system designed by the BBC for use in computer education. The BBC micro bit is a handheld, programmable micro-computer that can be used for all sorts of cool creations, from robots to musical instruments – the possibilities are endless.
BBC Micro Bit Board was designed to encourage children to get actively involved in writing software for computers and building new things, rather than being consumers of media. It has been designed to work alongside other systems, such as the Raspberry Pi.
It can be coded from any web browser in Blocks, Javascript, Python, Scratch and more; no software required. The device is described as half the size of a credit card and has an ARM Cortex-M0 processor, accelerometer and magnetometer sensors, Bluetooth and USB connectivity, a display consisting of 25 LEDs, two programmable buttons, and can be powered by either USB or an external battery pack. The device inputs and outputs are through five ring connectors that form part of a larger 25-pin edge connector.
The micro bit has a website full of coding languages, lesson plans, tutorials, and fun ideas to help The micro bit is completely programmable. That means each of its LEDs can be individually programmed as can its buttons, inputs and outputs, accelerometer, magnetometer and Bluetooth Smart Technology. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Requires:
- 1 x USB Cable(For programming).
- Computer with Internet access.
Features:
- A 5×5 LED matrix with 25 red LEDs to light up and can display animated patterns, scrolling text and alphanumeric characters
- Two programmable buttons. Use them as a games controller, or control music on a smartphone
- The on-board motion detector or 3-AXIS digital accelerometer that can detect movement e.g. shake, tilt or free-fall and use it to control motion activated games
- A built-in compass, a 3D magnetometer to sense which direction you’re facing and your movement in degrees and detect the presence of certain metals and magnets
- Bluetooth Smart Technology. Connect the micro: bit to another micro bit, devices, phones, tablets, cameras and other everyday objects
- Five Ring Input and Output (I/O) including power (PWR), ground (GND) and 3 x I/O. The Micro bit can read values from sensors and control things like motors or robots
- 20 pin edge connector: This allows the micro: bit to be connected to other devices such as Raspberry Pi, Arduino, Galileo and Kano through a standard connector
- Micro-USB controller: This is controlled by a separate processor and presents the Micro bit to a computer as a memory stick
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Microprocessor |
32-bit ARM® Cortex M0 CPU |
| Length (mm) |
52 |
| Width (mm) |
42 |
| Height (mm) |
11.7 |
| Weight (g) |
8 |
| System LED |
1 (Yellow) |
| System push button switch |
1 |
| Shipment Weight |
0.04 kg |
| Shipment Dimensions |
6 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Quick Start Guide
- Getting Started Videos
- About micro:bit
- Micro: bit Hardware
- Micro: bit Apps
Package Includes:
1 x BBC Micro Bit Board
1 x Quick Start Guide
