Introducing the brand-new micro: bit V2, a must-have for technology and STEM enthusiasts. Now available with improved features to the hugely successful predecessor board with over 4 million boards being sold worldwide. This powerful, pocket-sized computer will be loved by all that use it. Designed to teach kids coding and solve problems using technology. Featured By RoboticsBD.

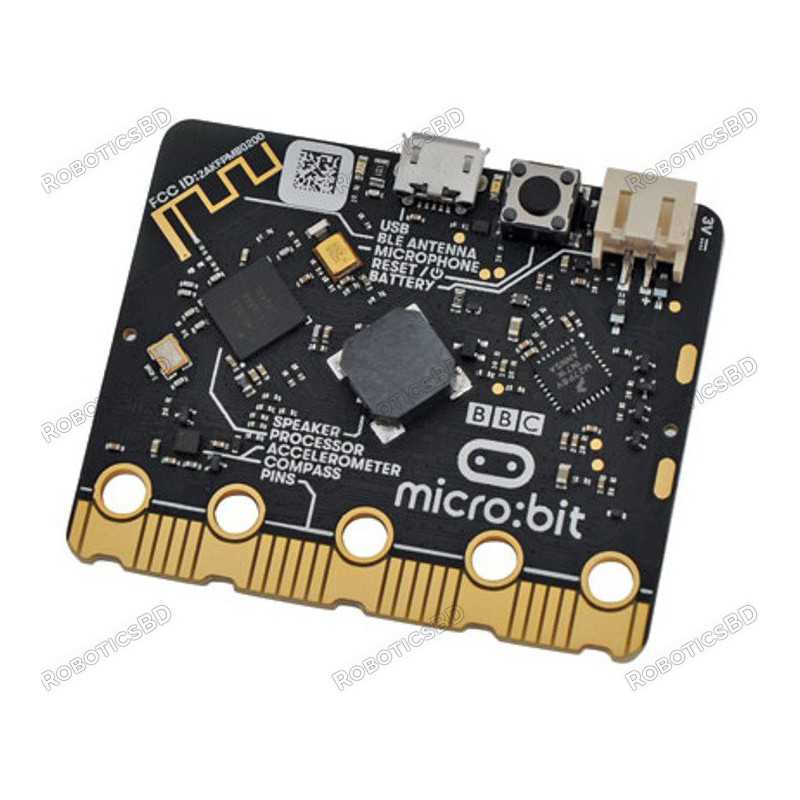

What is a micro: bit?
The micro: bit is only half the size of a credit card. It is equipped with a 5x5 programmable LED matrix, two programmable buttons, accelerometer, electronic compass, thermometer, Bluetooth, new touch sensitive logo, microphone, speaker and other electronic modules. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- On board speaker
- MEMS Microphone with LED indicator
- Touch sensitive logo
- Built-in sleep/off mode that means the board can be powered-down with batteries connected
- Discrete regulator that can supply up to 200mA of current to external accessories Refinements
- Notched edge connector. To make it easier to connect things like crocodile clips and conductive thread
- Power LED indicator. In addition to the USB activity indicator, a power LED shows whether the micro:bit is powered on or off
- Copper plated antenna. To easily identify the radio/Bluetooth component Featured By RoboticsBD.
General Specification |
Processor |
Nordic Semiconductor nRF52833 |
Memory |
512kB Flash, 128kB RAM |
Interface |
NXP KL27Z, 32kB RAM |
Microphone |
MEMS microphone and LED indicator |
Speaker |
on board speaker |
Logo touch |
touch sensitive logo pin |
Edge Connector |
25Pin,4 dedicated GPIO, PWM, I2C, SPI and ext. power. 3 ring pins for connecting crocodile clips/banana plugs. Notched for easier connection. |
I2C |
Dedicated I2C bus for peripherals |
Wireless |
2.4Ghz Micro: bit Radio/BLE Bluetooth 5.0 |
Power |
5V via Micro USB port, 3V via edge connector or battery pack. LED power indicator,Power off(push and hold power button) |
Current available |
200mA available for accessories |
Motion sensor |
ST LSM303 |
Software |
C++, Make Code, Python, Scratch |
Size |
5cm(w) x 4cm(h) |
Shipment Weight |
0.022 kg |
Shipment Dimensions |
14 × 9 × 2 cm |
Documentation:
- BBC micro: bit Official Website
- BBC micro: bit Graphical Programming Webpage
Package Includes:
1 x MicroBit V2- an Educational & Creative Tool for Kids
