Whether you are a beginner or already have experience with Arduino under your belt, This Arduino wireless and IoT kit by RoboticsBD will be a fun way to expand your knowledge. RoboticsBD
Building some creative and complex projects is a great way to walk through coding and basic knowledge wireless communication via Arduino.
This kit includes everything you need to get started with wireless and IoT Project using an Arduino and a lot of things that will take you from a beginner to an enthusiast. It includes all of the basics: an UNO board, breadboard, cables and breadboard power supply. RoboticsBD
Featured Project:
- Send Receive SMS & Call with SIM900 GSM Shield & Arduino
- Interfacing nRF24L01+ Wireless Module with Arduino
- Interfacing 433MHz RF Tx-Rx Modules with Arduino
- Working with NEO-6M GPS Module with Arduino
- Send Receive SMS & Call with SIM800L GSM Module & Arduino
Features:
- All-in-one kit, a great ADVANCED kit for pro to code.
- Great for Starting with Arduino Programming
- Variety of components are included in this pack to try out different projects.
- The kit comes with quality components assured by Robotics Bangladesh
- UNO Specs:
- Model Type: UNO Rev R3
- Microcontroller Chip: ATmega328
- Input Voltage(Recommended): 7-12V
- Input Voltage (limit): 6-20V
- Operating Voltage: 5
- Analog I/O Pins: 6
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- DC Current per I/O Pin: DC Current per I/O Pin: 40 mA; DC Current for 3.3V Pin: 50 mA
- Clock Speed: 16 MHz
- EEPROM: 1 KB (ATmega328)
- Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader
- PWM Output Pins: 6
- SRAM: 2 KB (ATmega328)
- Power Supply Option: DC Jack or USB
- On Board LEDs: Yes
- Operating Temperature (°C): -40 to +90
- Dimensions in mm (LxWxH): 75 x 54 x 12
- Weight (gm): 26
This is ADVANCED kit, you will need intermediate knowledge about Arduino Coding
General Specification |
Length (mm) |
210 |
Width (mm) |
130 |
Height (mm) |
60 |
Weight (gm) |
350 |
Shipment Weight |
0.4 kg |
Shipment Dimensions |
21 × 13 × 6 cm |
Documentation:
- Documentation is included in the Box

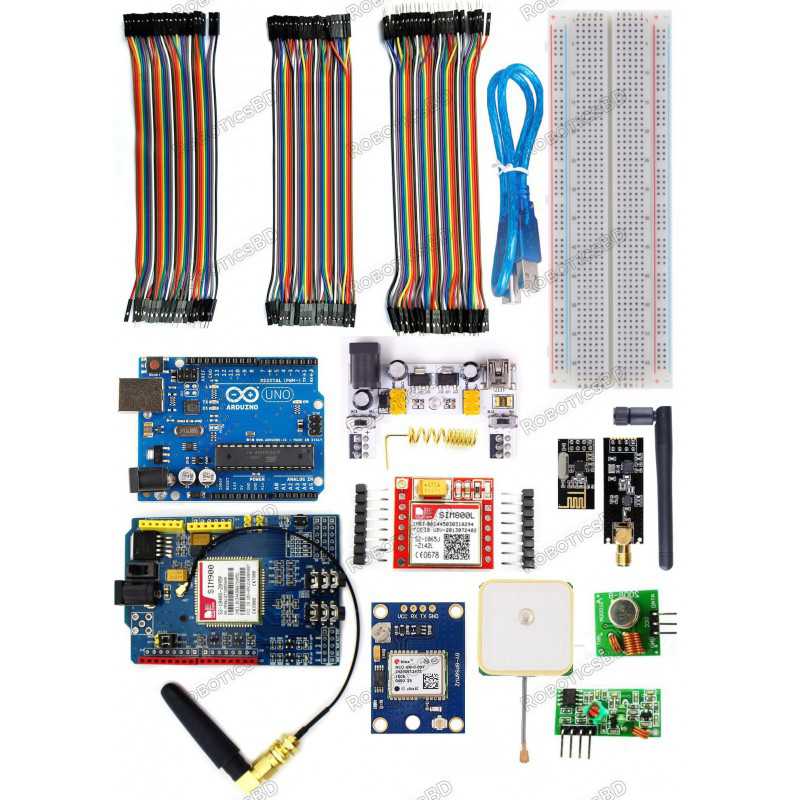

Package Includes:
1 x Arduino Uno R3
40 x Jumper wire Male to Male
40 x Jumper wire Male to Female
40 x Jumper wire Female to Female
1 x MB102 Breadboard 830point
1 x Breadboard Power Supply
1 x Sim900 Shield
1 x Sim800L Shield
1 x nRF24L01+ Wireless Module
1 x 433MHz RF Tx-Rx Modules
