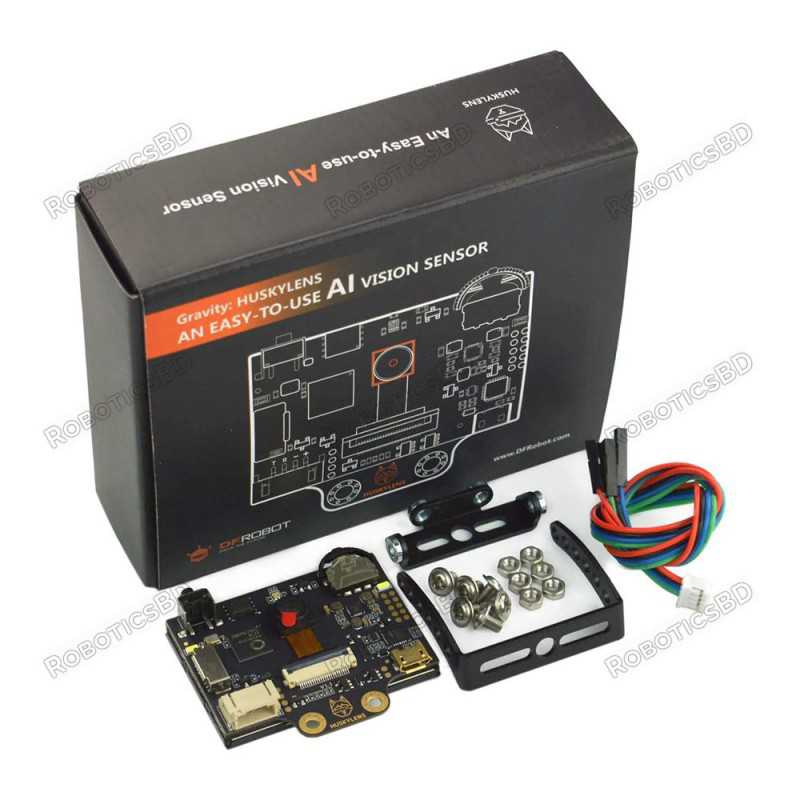

HuskyLens is an easy-to-use AI Machine Vision Sensor. It is equipped with multiple functions, such as face recognition, object tracking, object recognition, line tracking, color recognition, and tag(QR code) recognition.. Featured By RoboticsBD.
HuskyLens adopts the new generation of specialized AI chip Kendryte K210. The performance of this special AI chip is 1,000 times faster than that of the STM32H743 when running neural network algorithm. With these excellent performances, it is capable of capturing even fast-moving objects.With the HuskyLens, your projects have new ways to interact with you or environment, such as interactive gesture control, autonomous robot, smart access control and interactive toy. There are so many new applications for you to explore.
| General Specification | |
| Processor | Kendryte K210 |
| Image Sensor | OV2640 (2.0Megapixel Camera) |
| Supply Voltage | 3.3~5.0V |
| Current Consumption (TYP) | 320mA/3.3V, 230mA/5.0V (face recognition mode; 80% backlight brightness; fill light off) |
| Connection Interface | UART, I2C |
| Display | 2.0-inch IPS screen with 320*240 resolution |
| Built-in Algorithms | Face Recognition, Object Tracking, Object Recognition, Line Tracking, Color Recognition, Tag Recognition |
| Dimension | 52mm * 44.5mm / 2.05 x 1.75inch |
| Shipment Weight | 0.170 kg |
| Shipment Dimensions | 17.5 × 13.5 × 5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x HuskyLens Mainboard
6 x M3 Screws
6 x M3 Nuts
1 x Small Mounting Bracket
1 x Heightening Bracket
1 x Gravity 4-Pin Sensor Cable
1 x Silicone Case
The latest price of Gravity Huskylens AI Camera Vision Sensor with Silicone Case in Bangladesh is BDT 9,890 You can buy the Gravity Huskylens AI Camera Vision Sensor with Silicone Case at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
