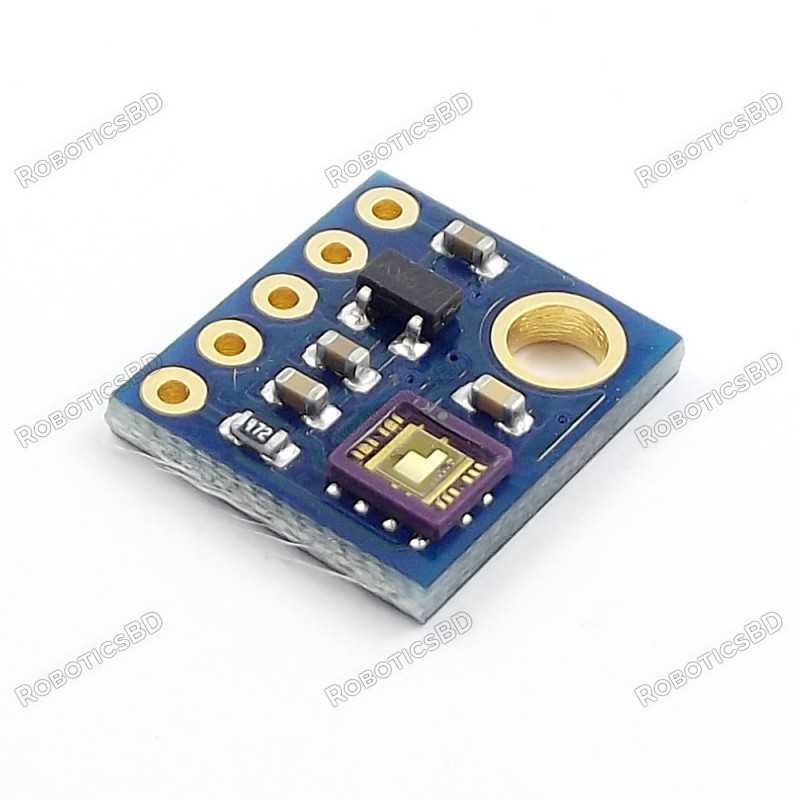

This is GYML8511 Analog Output Ultra-Violet Light Sensor Module. The GYML8511 module is easy to use the ultraviolet light sensor. The GYML8511 Sensor works by outputting an analog signal in relation to the amount of detected UV light. RoboticsBD
This breakout can be very handy in creating devices that warn the user of sunburn or detect the UV index as it relates to weather conditions.
This sensor detects 280-390nm light most effectively. This is categorized as part of the UVB (burning rays) spectrum and most of the UVA (tanning rays) spectrum. It outputs an analog voltage that is linearly related to the measured UV intensity (mW/cm2).
Simply connect the output of the module to an ADC channel of the microcontroller to read UV Light intensity. RoboticsBD
VIN: Power Connection (3V – 5V)
3.3V: Output of the onboard regulator
GND: Ground
OUT: Analog Output
EN: Enable Input
| General Specification | |
| Model | GY-ML8511 |
| Operating Voltage (VDC) | 3 ~ 5 |
| Max. Operating Current (mA) | 0.19 |
| Operating Temperature (°C) | -40 to 90 |
| Detection Wavelength Band | 280nm to 390nm |
| Peak Wavelength | 365nm |
| PCB Size ( L x W ) mm | 13 x 12 |
| Shipment Weight | 0.05 kg |
| Shipment Dimensions | 4 × 4 × 2 cm |
1 x GY-ML8511 Ultraviolet Light UV Sensor Module
1 x 5pin Male-Male Header
The latest price of GY-ML8511 Ultraviolet Light UV Sensor Module in Bangladesh is BDT 410 You can buy the GY-ML8511 Ultraviolet Light UV Sensor Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
