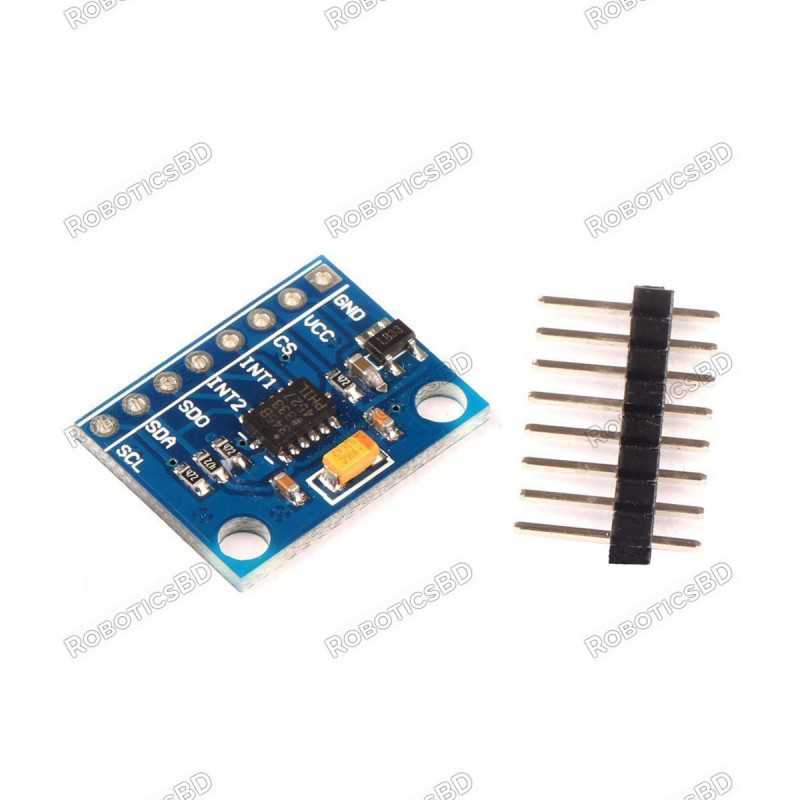

ADXL345 Triple Axis Accelerometer Board is a small, thin, low-power, 3-axis accelerometer with a high resolution (13-bit) measurement at up to ±16g. Digital output data is format as a 16-bit two’s complement and is accessible through either an SPI (3- or 4-wire) or I2C digital interface. RoboticsBD
The ADXL345 Triple Axis Accelerometer Board is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°. RoboticsBD
Several special sensing functions are provided. Activity and inactivity sensing detect the presence or lack of motion and if the acceleration on any axis exceeds a user-set level. Tap sensing detects single and double taps. Free-fall sensing detects if the device is falling. These functions can be mapped to one of two interrupt output pins. An integrated, patent-pending 32-level first-in, first-out (FIFO) buffer can be used to store data to minimize host processor intervention. RoboticsBD
Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. RoboticsBD
Applications :
- Pointing devices.
- Handsets.
- Medical Instrumentation.
- Gaming.
- Industrial instrumentation.
- Personal navigation devices.
- Hard disk drive (HDD) protection.
- Fitness equipment.
- defense and aerospace.
Features :
- Ultra-Low Power: 40µA in measurement mode, 0.1µA in standby@ 2.5V.
- Free-Fall Detection.
- Tap/Double Tap Detection.
- Flexible interrupt modes mappable to either interrupt pin Measurement ranges selectable via serial command Bandwidth selectable via serial command
- Wide temperature range (−40°C to +85°C).
- 10,000 g shock survival.
- Support 5V/3.3V voltage input, onboard RT9161 power chip, lower pressure drop faster than 1117, the faster load speed of response, very suitable for high-noise power supply environment.
- User-selectable resolution
- Fixed 10-bit resolution. RoboticsBD
- Full resolution, where resolution increases with G range, up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB scale factor in all G ranges).
| General Specification |
| Input Supply Voltage (VDC) |
3.3 ~ 5 |
| Interface Type |
I²C, SPI |
| Sensing Range |
±2g, ±4g, ±8g, ±16g |
| X-Axis Sensitivity |
28.6 LSB/g |
| Y-Axis Sensitivity |
31.2 LSB/g |
| Z-Axis Sensitivity |
34.5 LSB/g |
| Length (mm) |
20.5 |
| Width (mm) |
15.5 |
| Height (mm) |
3.5 |
| Weight (gm) |
0.6 |
| Shipment Weight |
0.085 kg |
| Shipment Dimensions |
4 × 3 × 1 cm |
Package Includes :
1 x ADXL345 Triple Axis Accelerometer Breakout
