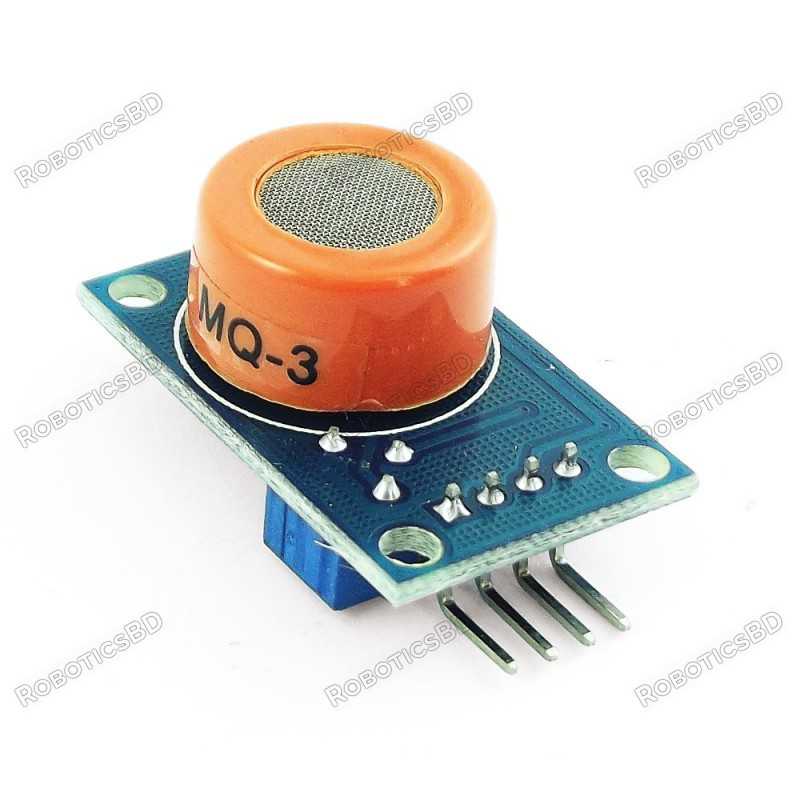

This MQ-3 Alcohol Detector Gas Sensor Module is simple to use. MQ-3 Alcohol Detector Module which can sense the presence of Alcohol in the air. The module uses our MQ-3 sensor. It simplifies the interface to the odd pin spacing of the sensor and provides an interface through standard 4 x 0.1″ header pins.
It provides an analog output corresponding to the concentration of the gas in the air and an easy to use digital output. RoboticsBD
The onboard potentiometer can be used to set the maximum gas concentration beyond which the digital output gets triggered. Just power the module with 5V set the threshold and you can start getting the gas concentration of the air around the sensor! An onboard LED signals the presence of any gas. Perfect sensing alcohol concentration on your breath just likes a common breathalyzer.
The digital output can be easily interfaced to microcontrollers and other circuits. The analog output can be hooked up to an ADC of a microcontroller to get a wide range of sensor readings. RoboticsBD
| General Specification | |
| Operating Voltage | 5V ±0.1 |
| Current Consumption | 150mA |
| Operation Temperature | -10°C ~ +70°C |
| Concentration | 0.05 mg/L ~ 10 mg/L Alcohol |
| Load resistance | 200 kΩ |
| Length (mm) | 36 |
| Width (mm) | 20 |
| Height (mm) | 16 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 5 × 5 × 4 cm |
1 x MQ-3 Alcohol Gas Sensor
The latest price of MQ-3 Alcohol Gas Sensor in Bangladesh is BDT 175 You can buy the MQ-3 Alcohol Gas Sensor at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
