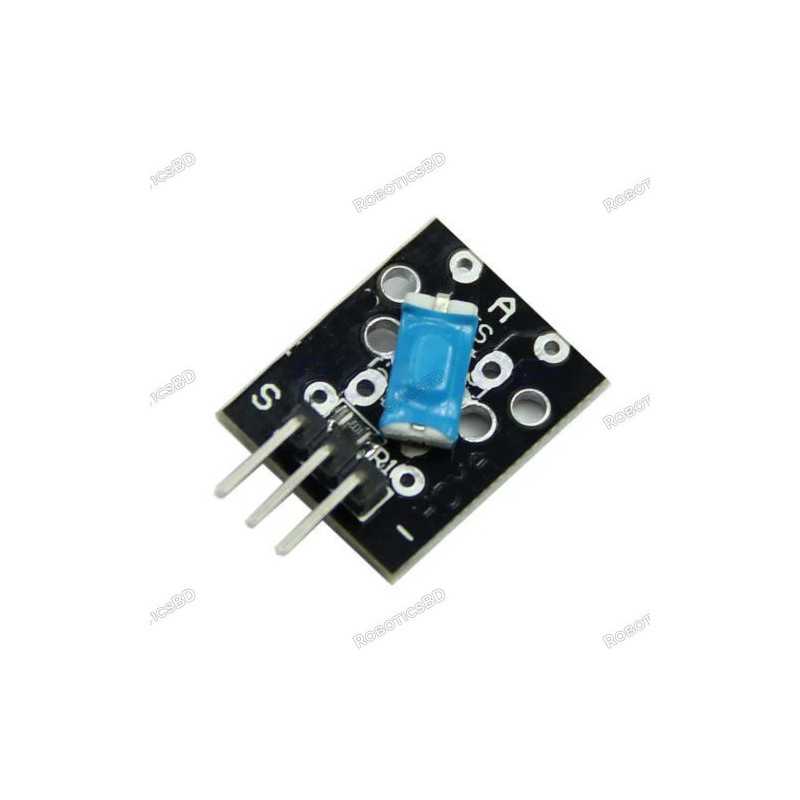

The Tilt Switch Sensor Module is a ball tilt switch with a metal ball inside. It is used to detect inclinations of a small angle. Featured By RoboticsBD.
Tilt switch module and a digital interface, built-in 13 LED build a simple circuit to produce tilt warning lamp 13 comes with digital interfaces of the LED, the tilt switch sensor interface to access digital 3, when the tilt open Off sensor senses a key signal, LED lights, otherwise off. Featured By RoboticsBD.
This Tilt Switch Sensor Module For Arduino simple yet effective tilt switch sensor module houses a metal ball which sits in a tube with electric contacts, as your robot or autonomous vehicle tilts, the ball rolls onto the contacts, a circuit is completed and a signal is sent back to your compatible Arduino control system. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
| General Specification | |
| Material | FR4 |
| Operating Voltage (VDC) | 5 |
| Length (mm) | 25 |
| Width (mm) | 15 |
| Height (mm) | 7 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Tilt Switch Sensor Module.
The latest price of Tilt Switch Sensor Module For Arduino in Bangladesh is BDT 65 You can buy the Tilt Switch Sensor Module For Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
Reference: RBD-0151
