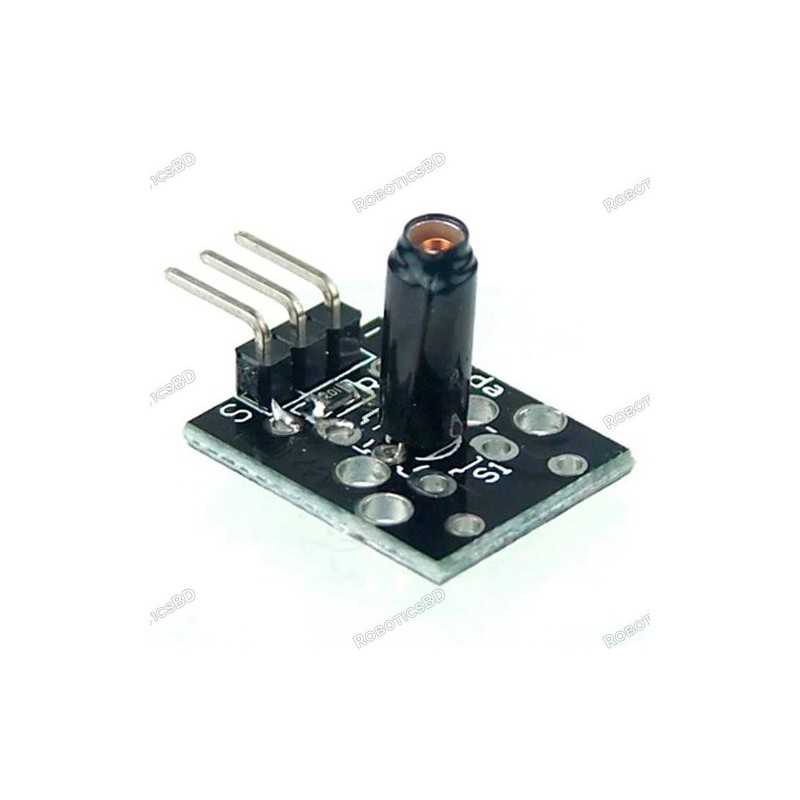

This switch at rest is open (off) state when it subjected to an external force touch with an appropriate shaking force, or its movement speed reaches appropriate centrifugal force (eccentric) heart, conductive pins will be in instantaneous conduction state to change the electrical characteristics, and when the external force disappears, electrical characteristics recovery to be open (off) state. Featured By RoboticsBD
This switch by default is in an OFF resting state. When an external force is applied to achieve a proper vibration, the conductive pin will momentarily conduct and change to ON status, make changes in electric property, and disappear when the external force is withdrawn. Its omnidirectional in nature meaning any angle can trigger the sensor. Featured By RoboticsBD
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
Note: PCB might be different from the picture as per stock
Pin Connection
Pin – ⇔ GND, connect to GND of the Arduino
Middle Pin ⇔ +5 v, connect to Arduino +5
Pin S ⇔ signal, connect to Arduino pin 10
Features :
- No direction, any angle can trigger the work.
- Sensitivity switches can be selected for the trigger sensitivity according to circuit requirements.
- This switch is suitable for the trigger of the small current circuit.
| General Specification |
| Component Type |
SW-18015P |
| Maximum Voltage(V) |
12 |
| Rated Heating Current(mA) |
20 |
| PCB Size ( L x W ) mm |
20 x 15 |
| Height (mm) |
18 |
| Shipment Weight |
0.008 kg |
| Shipment Dimensions |
12 × 8 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
Package Includes :
1 x Vibration Switch Module
