Built-human infrared sensor module. Sensor module is light effected and has delay switch module, load capacity and strong anti-jamming capability. RoboticsBD
Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp Exhaust fan 100W, Motor 100W, Electric bell 100W
Connection:
- Blue color: Negative line (-)
- Brown color: Live wire (+)
- Red: Ground wire
Features:
- Easy to install.
- Automatic, convenient, safe and practical.
- It has the function of power and detection indication.
- The motion sensor can identify day and night automatically.
- It has a wide detection range made up of up and down, left and right service field.
- This product is a new type of energy-saving lighting switch, it adopts a high sensitivity detector, integrates circuit and SMT.
- It utilizes human motion infrared rays as control signal sources when one enters the detection field, it will start the controlled load at once.
| General Specification |
| Color: |
Grey, Black, White |
| Material: |
ABS |
| Working Rotation: |
180 Degree |
| Voltage: |
DC 12V |
| Standard: |
LVD, EMC, CE, RoHS |
| IP Rating: |
Indoor application IP44 |
| LUX Setting: |
2-2000lux svr adjustable |
| Size (cm) |
18 x 7 x 5 |
| Induction lighting time: |
5s~6min adjustable time |
| Detection distance: |
Approx. 12M, installation 1.5-2.5M High |
| Shipment Weight |
0.095 kg |
| Shipment Dimensions |
19 × 8 × 6 cm |
-
Note:
- The item can be less sensitive if you go forward the detector,
- but it can be sensitive if you go down the for cross-section.
- If the person stops moving under the motion sensor, it can't light on also.
- When it is very hot in summer, then the temperature of the environment is nearly the same as people, it may not detect well.
Package Includes:

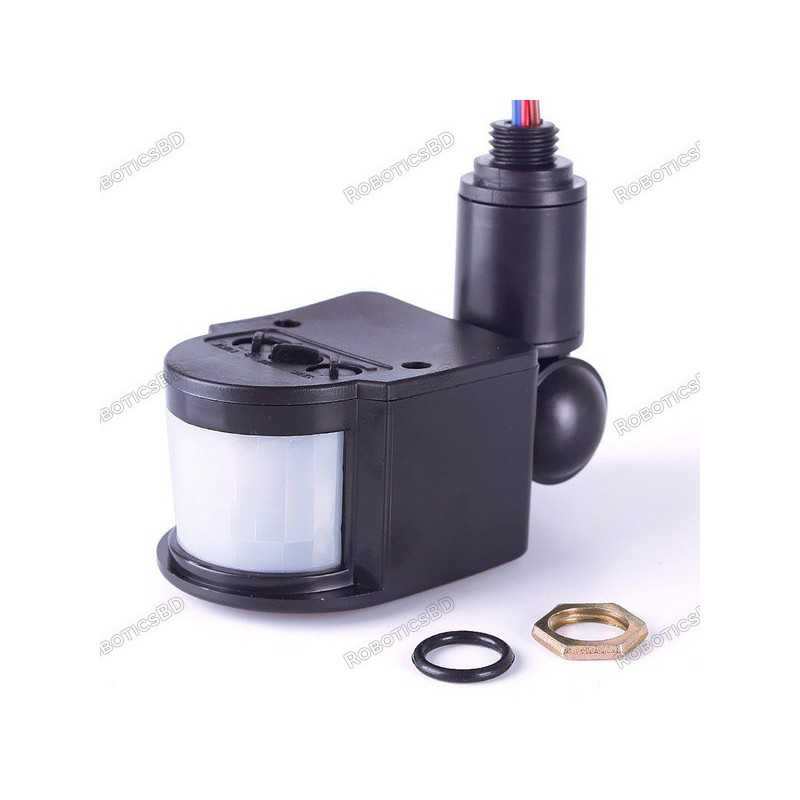

1 x Automatic Infrared PIR Motion Sensor Switch 12V
