Rain & Steam Detection Sensor Module

RBD-0665
  • Operating voltage: 5V
  • Provide both digital and analog output
  • Adjustable sensitivity. RoboticsBD
  • Output LED indicator
  • Compatible with Arduino
  • TTL Compatible
  • Bolt holes for easy installation
BDT 90
rating Read the 17 reviews
Average rating: 5/5 - Number of reviews: 17
Quantity
In-Stock

44 people have purchased this item in last 12 months
259 people recently added this item to the cart
130 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The Raindrops Detection sensor module is used for rain detection. It is also for measuring rainfall intensity. Rain sensor can be used for all kinds of weather monitoring and translated into output signals and AO. RoboticsBD

Raindrops Detection Sensor Module Rain Weather Module for Arduino, etc. Rain sensor can be used to monitor a variety of weather conditions and turned into several fixed output signal and Analog output.

It includes a printed circuit board (control board) that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance (or the more water), the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output 5V.

The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity through a potentiometer. The module is based on the LM393 op-amp.  Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

  1. The LM393, use of the wide voltage comparator
  2. Provide both digital and analog output
  3. Output LED indicator
  4. Compatible with Arduino
  5. TTL Compatible
  6. The sensor uses the high-quality FR – 04 double material, the large area of 5.5 * 4.0 CM
  7. Treatment of nickel plating and surface, have fight oxidation, electrical conductivity, and life has more superior performance
  8. The comparator output, signal clean, good waveform, driving ability is strong, for more than 15 mA;
  9. With potentiometer sensitivity adjustment
  10. The output format: digital switch output (0 and 1) and analog AO voltage output;
  11. Has a fixed bolt hole, convenient installation. RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Operating Voltage (VDC) 3.3 ~ 5
Voltage Comparator LM393
Driver Size(mm) 32x15x9 (LxWxH)
Collector Board Size(mm) 54x40x1.5 (LxWxH)
Shipment Weight 0.02 kg
Shipment Dimensions 7 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

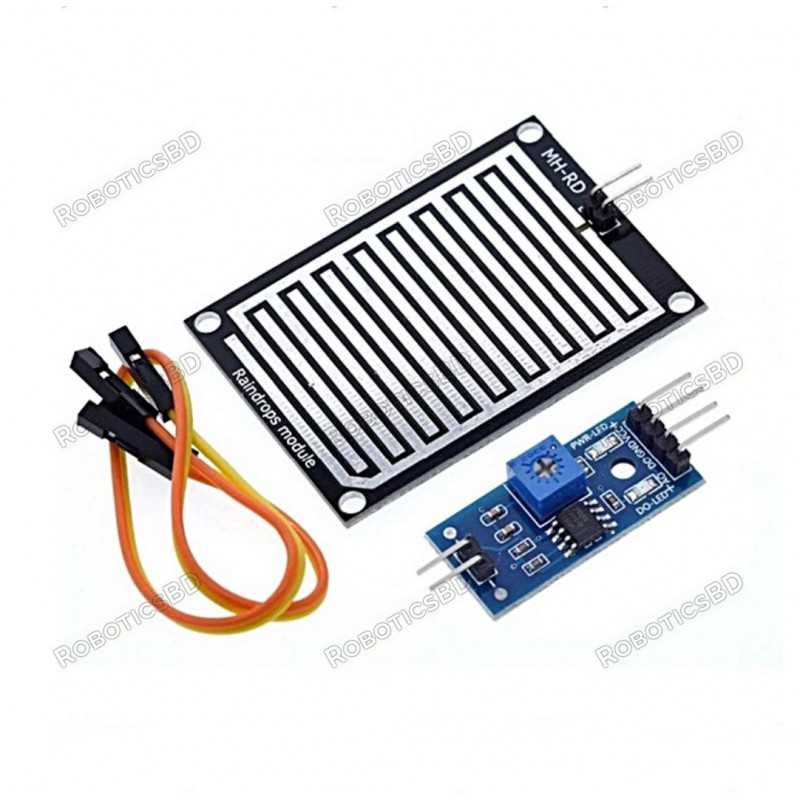

Package Includes :

1 x Printed Circuit Board for Rain Water Collection

1 x Control Board with LM393 Voltage Comparator

A 5-Wire Dupont Cable.
