WIFI Control. Support routing connection mode (AP) and LAN connection mode (STA).It only works with 2.4G WIFI network. DON’T use 5G WIFI network. IOS 10/Android 4.4 or later version. If your LED light is 5V,please use 5V power supply. RoboticsBD
Wide Compatibility. Support almost all the one-wire or two-wire LED driver ICs, such as WS2811,WS2812B,WS2813,WS2814,WS2815,SK6812RGBW, WS2801, SK6812RGB, LPD6803, LPD8806, APA102, TM1913,SK9822, UCS1903, SM16703, DMX512. (DO NOT control 5050RGB or RGBW led strip which has no IC )
Rich Color Modes. 180 kinds of multi-color dynamic modes, 8 kinds of single color modes such as meteor, breathing, wave, catch-up, stack, flash, flow, static. Color, brightness and speed are adjustable.
Capture image’s color you like. The Wi-Fi controller features creative from-image-to-effect function. It can capture the color of image, create distinctive color effect and synchronize light color with atmosphere of your room.
User-friendly design. MAX 2048 pixels (Recommend 1500Pixels)in total. Save user setting when power off. DC 5V/DC12V/24V wide working voltage; reverse connection protection; hot swap protection.5.5mmx2.1mm DC power jack
Color calibration. When the app color is inconsistent with the color of the LED strip, where green is blue and blue is green ,You can use the APP to calibrate the colors to make them consistent.6 color sequences, RGB, RBG, BRG, BGR, GRB, GBR, select one of them for calibration.
Insufficient power supply will cause the controller to lose control, the color of the LED strip is frozen, Wi-Fi is disconnected . Please note : When you Light up 1 color (red or green or blue or pure white) 0.1W/LED . 2 colors (red green) 0.2W/LED , 3 colors (red+green+blue=mixed white) 0.3W/LED.
It is not recommended to light up the full brightness white light for a long time, because the main function of the addressable RGB IC light strip or fairy string is chasing rainbow effects . Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: power supply/mobile/controller/led strip not include!
Note: Can not use 5.0G WIFI network , it just support 2.4G WIFI network
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Working Temperature: | -20~60 Degrees Celsius |
Working Voltage: | DC5V~24V; |
Working Current: | 20mA~130mA; |
Remote Distance: | 30 Meters; |
Product Size: | 85mm*45mm*22mm; |
Product Weight: | 40g; |
Certificates: | CE, RoHS; |
Shipment Weight | 0.040 kg |
Shipment Dimensions | 8.5 × 4.5 × 2.5 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

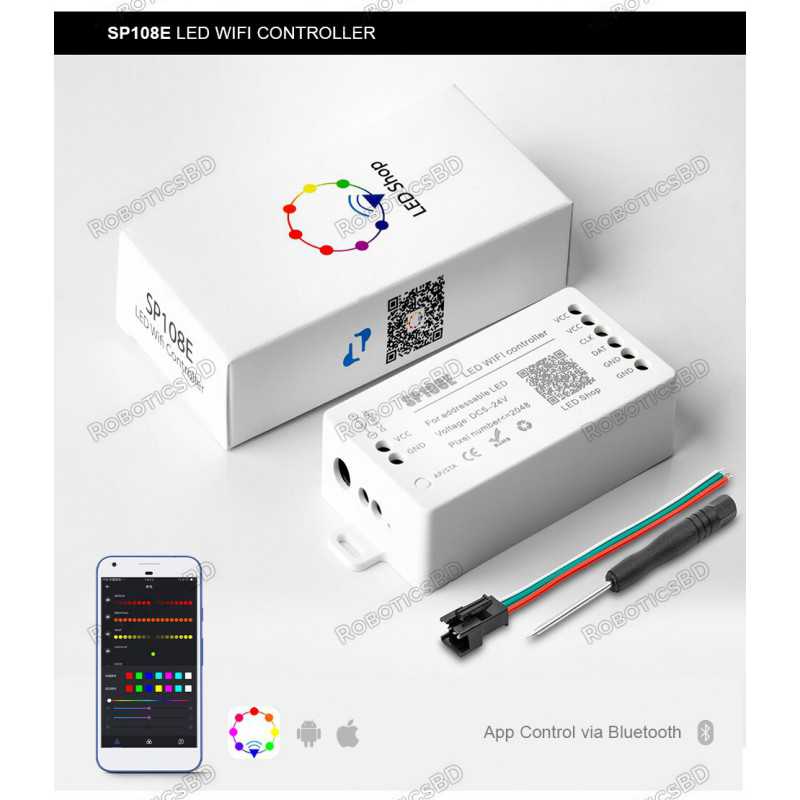

1x SP108E Bluetooth LED controller
1x 3pin female JST connector
1x Mini screwdriver
1x User manual
The latest price of SP108E LED Wifi Magic Controller WS2812B WS2813 LED Strip Light Smart APP Wireless Control Max 2048 Pixels in Bangladesh is BDT 1,800 You can buy the SP108E LED Wifi Magic Controller WS2812B WS2813 LED Strip Light Smart APP Wireless Control Max 2048 Pixels at best price from our RoboticsBD or visit RoboticsBD Office.
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
Product Images are shown for illustrative purposes only and may differ from the actual product. |
