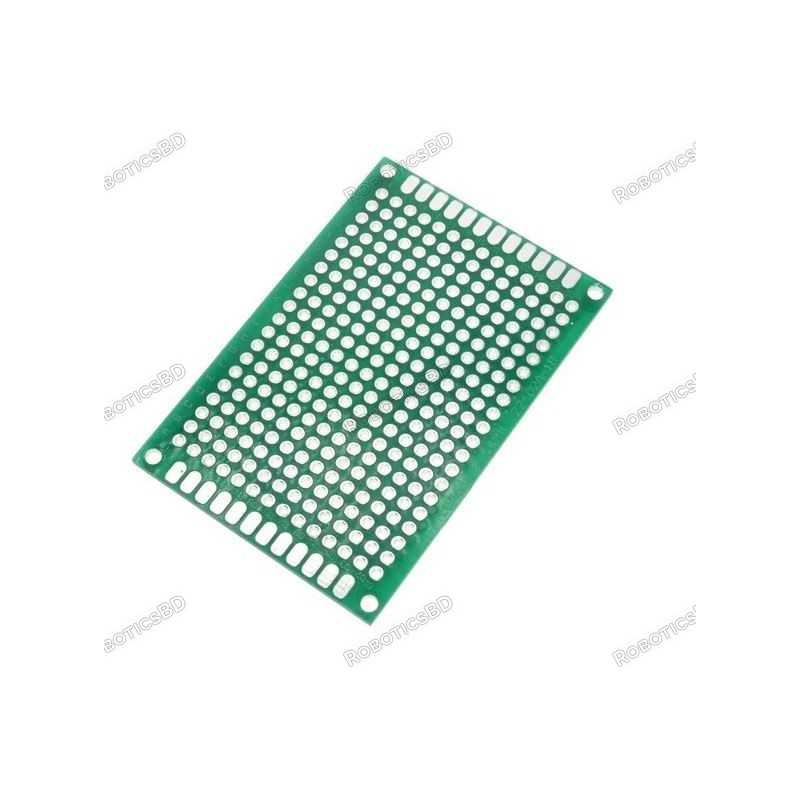

This is 4 x 6 CM Universal PCB Prototype Board Double-Side High-quality universal prototyping board with standard 0.1″ spacing through holes.
High-quality 4×6 cm FR4 material, Double sided, HASL, NC CNC drilled. RoboticsBD
| General Specification | |
| Base Material | FR4 |
| Copper Thickness (mm) | 1-4 oz |
| Length (mm) | 6 |
| Width (mm) | 4 |
| Board Thickness | 1.6 |
| Min. Hole Size (mm) | 0.3 |
| Weight (gm) | 6 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 7 × 5 × 1 cm |
1 x Double Sided FR-4 PCB Prototype Board 4x6cm
The latest price of Double Sided FR-4 PCB Prototype Board 4x6cm in Bangladesh is BDT 50 You can buy the Double Sided FR-4 PCB Prototype Board 4x6cm at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
