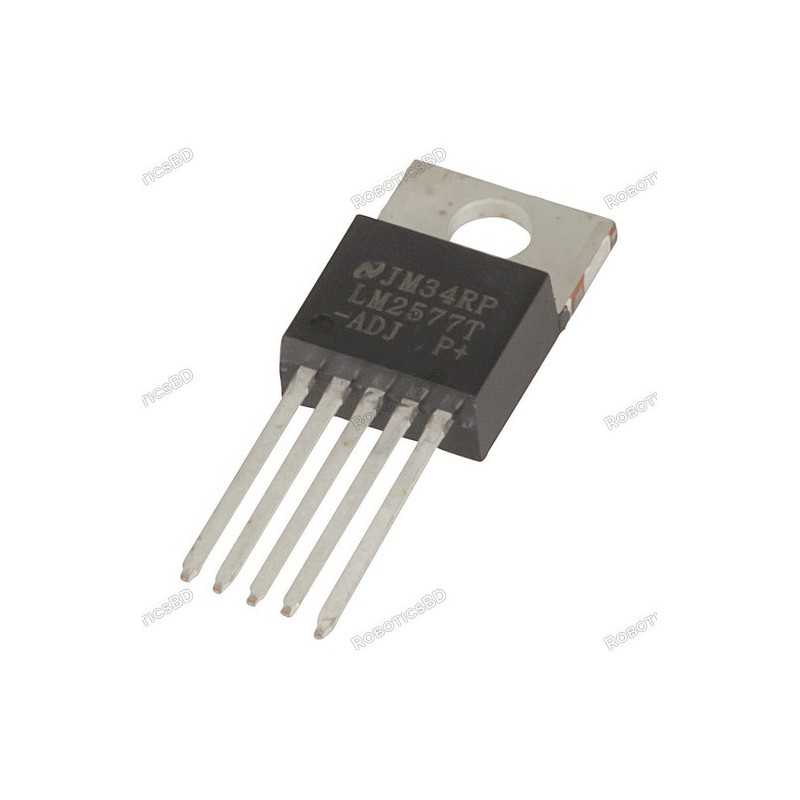

The LM1577/LM2577 are monolithic integrated circuits that provide all of the power and control functions for step-up (boost), flyback, and forward converter switching regulators. The device is available in three different output voltage versions: 12V, 15V, and adjustable. RoboticsBD
Requiring a minimum number of external components, these regulators are cost effective, and simple to use. Listed in this data sheet are a family of standard inductors and flyback transformers designed to work with these switching regulators. RoboticsBD
| General Specification | |
| Package/Case | PDIP-5 |
| Minimum Supply Voltage (V) | 3.5 |
| Maximum Supply Voltage (V) | 40 |
| Product Type | LM2577 Boost Regulator IC |
| Operating Temperature Range (°C) | –55° C to +125° C |
| Mounting Type | Through Hole |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
1 x LM2577 Boost Regulator IC
The latest price of LM2577 Boost Regulator IC in Bangladesh is BDT 60 You can buy the LM2577 Boost Regulator IC at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
