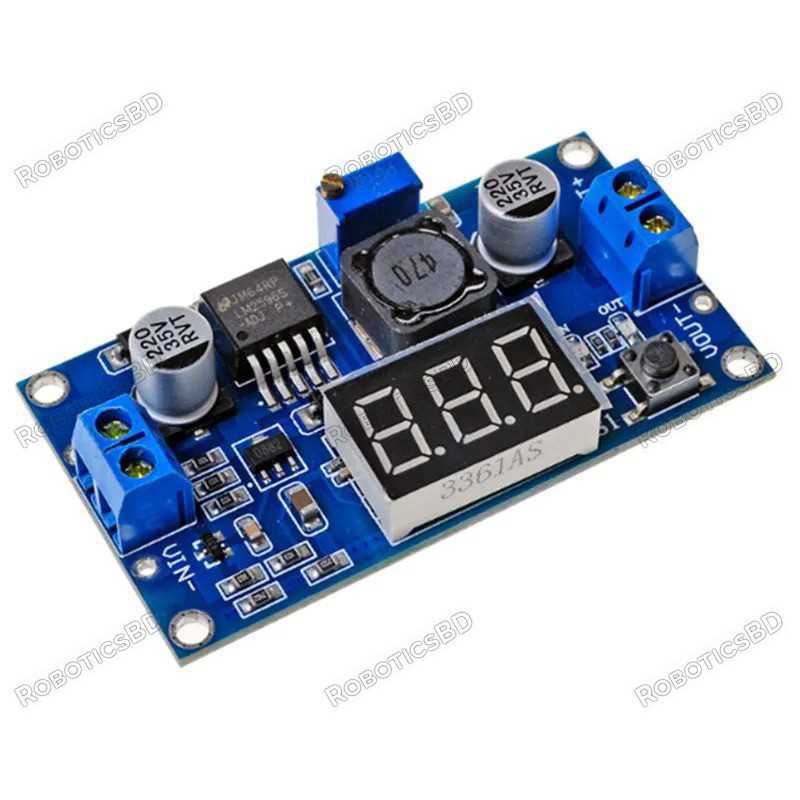

The LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter module is a 150 KHz fixed frequency PWM buck (step-down) DC/DC module. Requiring a minimum number of external components, these regulators are cost-effective, and simple to use.
This version of LM2577 DC-DC step-up (boost) power supply module includes the very useful addition of an integrated digital voltage meter.
Together with its high precision multi-turn potentiometer, this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 3 – 34V and an adjustable output range of 4 – 35V. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification | |
| Input Voltage (V) | 3 to 34 |
| Output Voltage(V) | 4 ~ 35 |
| Max. Output Current (A) | 3 |
| Voltmeter Range(V) | 0 to 40 |
| Switching Frequency(KHz) | 52 |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm) | 60 |
| Width (mm) | 35 |
| Height (mm) | 13.5 |
| Weight (gm) | 24 |
| Shipment Weight | 0.027 kg |
| Shipment Dimensions | 7 × 4.5 × 2 cm |
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x LM2577 3A DC-DC Step UP Voltmeter.
The latest price of LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter Module in Bangladesh is BDT 440 You can buy the LM2577 3A DC-DC Step UP LED Voltmeter 3-34 to 4-35V Adjustable Boost Converter Module at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
