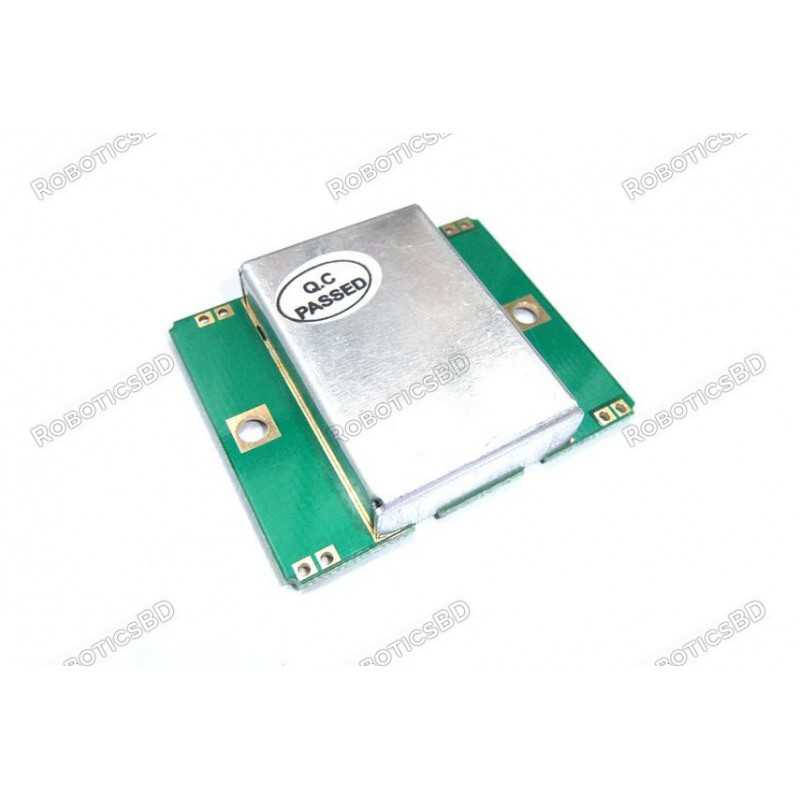

HB100 Miniature Microwave Motion Sensor is an X-Band Bi-Static Doppler transceiver module. It has a built-in Dielectric Resonator Oscillator (DRO) and a pair of Microstrip patch antenna array, making it ideal for usage in motion detection equipment.
This module is ideal for alarms, motion detectors, lighting control, vehicle speed measurement, and automatic doors. RoboticsBD
Note: Please use a low voltage soldering iron and connect it to a reliable grounding. This device is sensitive to ESD and it may be damaged during soldering. The IF output of the HB100 module is especially sensitive. You can check it for damage using a multimeter in diode mode. The forward voltage drop between IF and GND should be about 0.25 V. RoboticsBD
| General Specification | |
| Input Supply Voltage (VDC) | 4.75 ~ 5.25 |
| X-Band Frequency(GHz) | 10.525 |
| Minimum Power Output | 13 dBm EIRP |
| PCB Size ( L x W ) mm | 45 x 38 |
| Height (mm) | 8 |
| Shipment Weight | 0.04 kg |
| Shipment Dimensions | 6 × 5 × 2 cm |
1 x HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino
The latest price of HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino in Bangladesh is BDT 620 You can buy the HB100 Microwave Sensor 10.525GHz Doppler Radar Motion Detector Arduino at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
