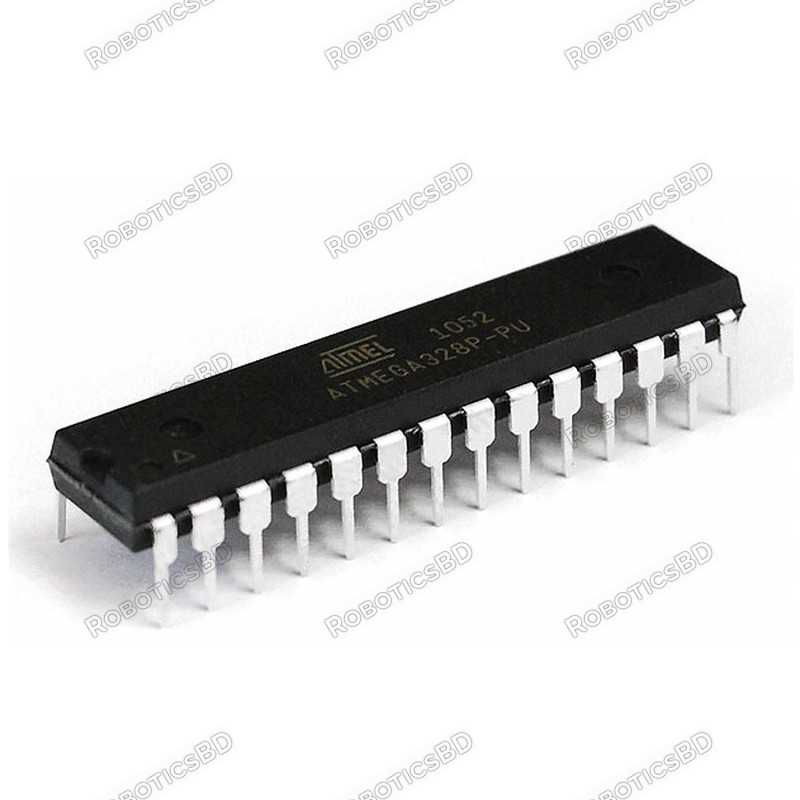

ATmega328P-PU PDIP-28 Microcontroller

RBD-1215
  • 131 powerful instructions – Most Single Clock Cycle Execution
  • 32 x 8 general purpose working registers
  • Fully static operation
  • Up to 20MIPS throughput at 20MHz
  • On-chip 2-cycle multiplier
  • Write/erase cycles: 10,000 flash/100,000 EEPROM
  • Optional boot code section with independent lock bits
  • In system programming by on-chip boot program
  • True read while write operation
  • Programming lock for software security
  • Two 8-bit timer/counters with separate prescaler and compare mode
  • One 16-bit timer/counter with separate prescaler, compare mode, and capture mode
  • Real-time counter with separate oscillator
BDT 840
rating Read the 11 reviews
Average rating: 4.5/5 - Number of reviews: 11
Quantity
In-Stock

24 people have purchased this item in last 12 months
207 people recently added this item to the cart
47 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement
This is a Chinese version of ATmega328P-PU IC which also known as ATmega328P-U. So you may receive IC with printed name ATmega328P-U.
The ATMEGA328P- U is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328P-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. RoboticsBD
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers. RoboticsBD
The ATmega328P-PU AVR is supported with a full suite of program and system development tools including C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation Kits. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Performance, Low Power Design:
8-Bit Microcontroller Atmel® AVR® advanced RISC architecture
  1. 131 Instructions most of which are executed in a single clock cycle
  2. Up to 20 MIPS throughput at 20 MHz
  3. 32 x 8 working registers
  4. 2 cycle multiplier.

Memory Includes:
  1. 32KB of programmable FLASH
  2. 1KB of EEPROM
  3. 2KB SRAM
  4. 10,000 Write and Erase Cycles for Flash and 100,000 for EEPROM
  5. Data retention for 20 years at 85°C and 100 years at 25°C
  6. Optional bootloader with lock bits
  7. In System Programming (ISP) by via bootloader
  8. True Read-While-Write operation
  9. Programming lock available for software security.

I/O and Package:
  1. 23 programmable I/O lines
  2. 28 pin PDIP package

Speed Grades:
  1. 0-4 MHz at 1.8-5.5V
  2. 0-10 MHz at 2.7-5.5V
  3. 0-20 MHz at 4.5-5.5V

Low power consumption mode at 1.8V, 1 MHz and 25°C:
  1. Active Mode: 0.3 mA
  2. Power-down Mode: 0.1 μA
  3. Power-save Mode: 0.8 μA (Including 32 kHz RTC)
General Specification
Package/Case PDIP-28
Minimum Supply Voltage (V) 2.7
Maximum Supply Voltage (V) 5.5
No. of I/Os 23
No. of Timers/Counters 3 Timer
Product Type 8-bit Microcontrollers – MCU
Mounting Type Through Hole
Product Series ATmega328P
Maximum Clock Frequency (MHz) 20
Data Bus Width 8 bit
Interface Type I2C, SPI, USART
Program Memory Size (kB) 32
Data RAM size and Type 2kB SRAM
Data ROM Size and Type 1024 B EEPROM
Operating Temperature Range (°C) -24 to 84
Dimensions (mm) LxWxH 34.8 x 7.5 x 4.57
Shipment Weight 0.004 kg
Shipment Dimensions 8 × 8 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x ATmega328P-U PDIP-28 Microcontroller.
