The Due Arduino is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. The Due, AT91SAM3X8E ARM Cortex-M3 Board with Micro USB Cable is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input / output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), a 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button.

This board with micro-USB cable is ready-to-equip in your project and contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

The SAM3X has 512KB (2 blocks of 256KB) of flash memory for storing code. The bootloader is pre-burned in a factory from Atmel and is stored in a dedicated ROM memory. The available SRAM is 96KB in two contiguous banks of 64KB and 32KB. All the available memory (Flash, RAM, and ROM) can be accessed directly as a flat addressing space.

It is possible to erase the Flash memory of the SAM3X with the onboard erase button. This will remove the currently loaded sketch from the MCU. To erase, press and hold the Erase button for a few seconds while the board is powered.

Connections / Interfaces

Digital I / O pins: 54
With PWM: 12
USB: Yes
SPI: No
I²C: No
ICSP: Yes
TWI: 2x
UART: 4x
CAN: Yes
SAC: 2x
LAN: No
Bluetooth: No

Note: Unlike other Arduino boards, the Due board runs at 3.3V. The maximum voltage that the I/O pins can tolerate is 3.3V. Providing higher voltages, like 5V to an I/O pin could damage the board.

 Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features :

1. A 32-bit core, that allows operations on 4 bytes wide data within a single CPU clock.
2. CPU clock at 84Mhz
3. 96KBytes of SRAM
4. 512KBytes of flash memory for code
5. A DMA controller, that can relieve the CPU from doing memory intensive tasks

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes :

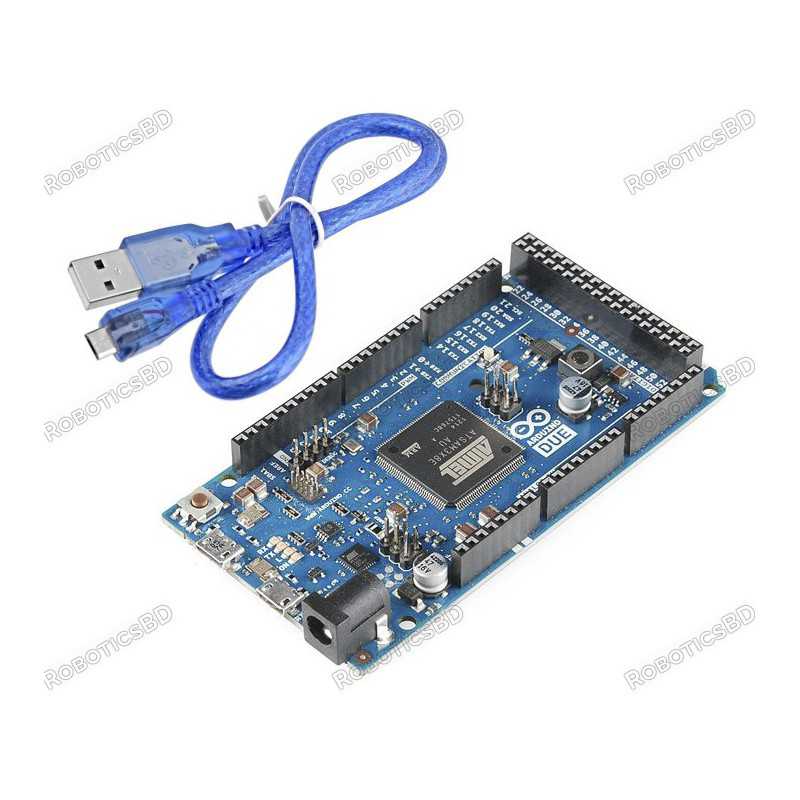

1 x Due, AT91SAM3X8E ARM Cortex-M3 Board

1 x 6 Inch Micro USB Cable – A to Micro B

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of Arduino Due in Bangladesh?

The latest price of Arduino Due in Bangladesh is BDT 3,500 You can buy the Arduino Due at best price from our RoboticsBD or visit RoboticsBD Office.
