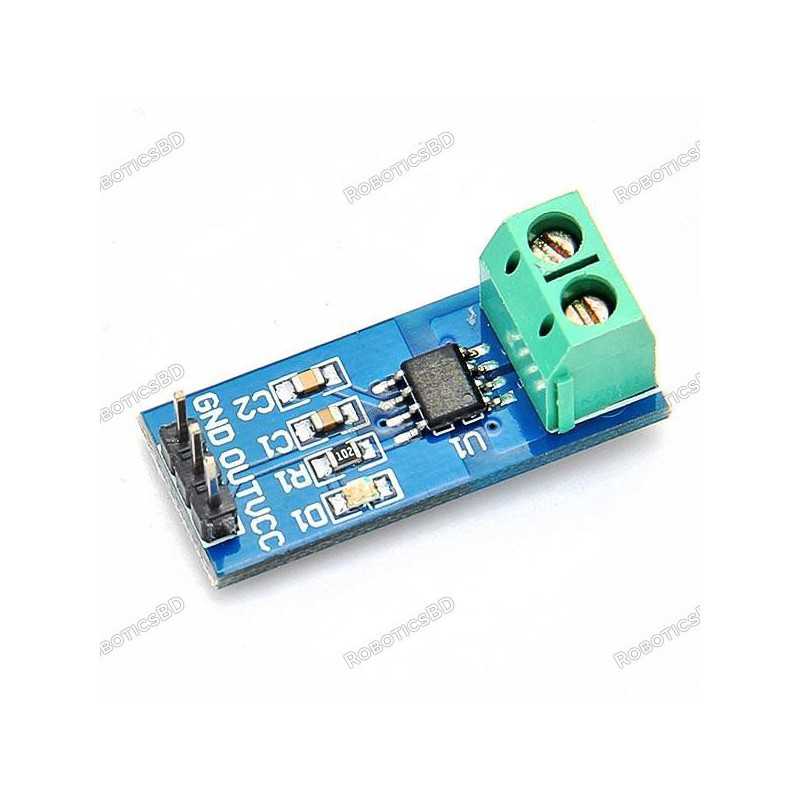

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall Circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc. RoboticsBD
This AC721 current module is based on the ACS712 sensor, which can accurately detect AC or DC current.
The maximum AC or DC that can be detected can reach 30A, and the present current signal can be read via analog I / O port of Arduino. RoboticsBD
Note: The color of the product may vary. while shipping you may get any one of them.
| General Specification | |
| Current sensor chip | ACS712 |
| Operating Voltage (V) | 4.5 ~ 5.5V DC |
| Measure Current Range | -30 ~ +30 A |
| Sensitivity | 100mV/A |
| Length (mm) | 31 |
| Width (mm) | 13 |
| Height (mm) | 13.5 |
| Weight (gm) | 5 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 × 2 × 2 cm |
1 x Current Sensor ACS712-30A
The latest price of Current Sensor ACS712-30A in Bangladesh is BDT 219 You can buy the Current Sensor ACS712-30A at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
