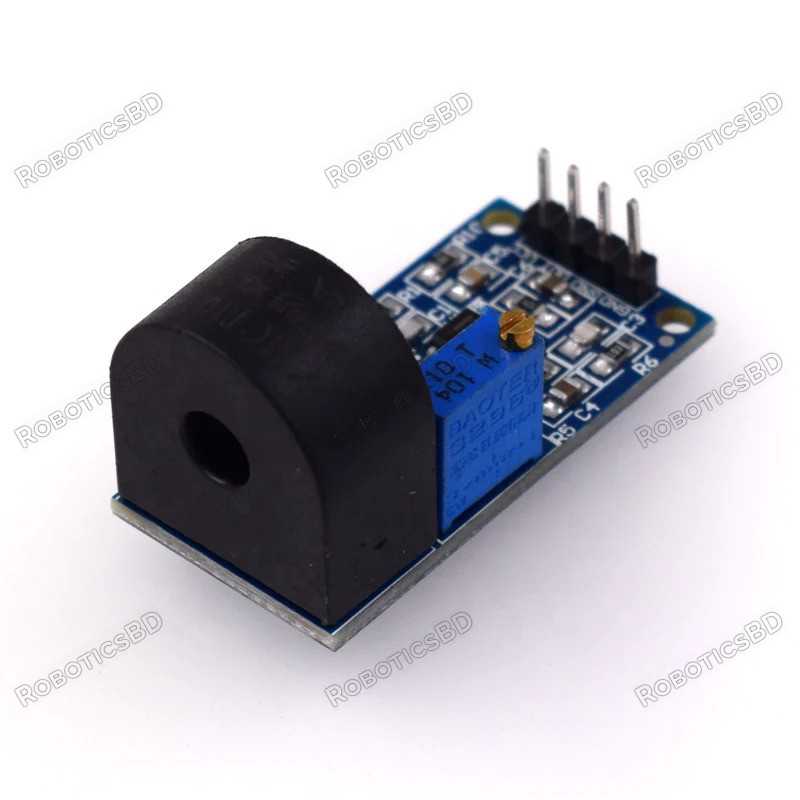

HW670 5A Current Sensor

RBD-2120
  • Onboard precision microcurrent transformer.
  • Onboard sampling resistor.
  • The module can measure AC currents less than 5A, the corresponding analog output 5A/5mA.
BDT 200
rating Read the review
Average rating: 5/5 - Number of reviews: 1
Quantity
In-Stock

11 people have purchased this item in last 12 months
23 people recently added this item to the cart
50 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

HW-670 AC current Sensor is the best for the purpose of the DIY project and industrial application, where we need to measure the accurate AC current with current transformer. This is an perfect choice to measure the AC current using Arduino/ESP8266/Raspberry Pi like an opensource platform. In many electrical projects, engineer directly deals with measurements with few basic requirements.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Onboard precision micro current transformer
  2. High precision op-amp circuit board, do accurate sampling for the signal and appropriate compensation, and other functions
  3. The module can measure within 5A current communication , corresponding to output analog quantity can be adjusted
  4. PCB board size : 38 (mm) x18.5 (mm)

General Specification
Rated Input Current (A) 5
Rated Output Current (mA) 5
The linear range 0 ~ 10A (100 ohms)
Change 1000: 1
Linearity 0.002
Precision Rating 0.2
Sealing material Epoxy Resin
Operating Temperature (°C) -40 to 90
Length (mm) 40
Width (mm) 19
Height (mm) 22
Weight (gm) 8
Shipment Weight 0.010 kg
Shipment Dimensions 10 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

Package Includes:

1 x HW670 5A Current Sensor

What is the price of HW670 5A Current Sensor in Bangladesh?

The latest price of HW670 5A Current Sensor in Bangladesh is BDT 200 You can buy the HW670 5A Current Sensor at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
