The Heart Rate Monitor Kit with AD8232 ECG sensor module Kit For Arduino is a cost-effective board use to measure the electrical activity of the heart. This electrical activity can be chart as an ECG or Electrocardiogram and output as an analog reading. RoboticsBD
ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily. The ECG module AD8232 heart ECG monitoring sensor module is an integrated signal conditioning block for ECG and other bio-potential measurement applications. RoboticsBD
The ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions; such as those created by motion or remote electrode placement.
The AD8232 Heart Rate Monitor breaks out nine connections from the IC that you can solder pins, wires, or other connectors too. SDN, LO+, LO-, OUTPUT, 3.3V, GND provide essential pins for operating this monitor with an Arduino or other development board.
Also provided on this board are RA (Right Arm), LA (Left Arm), and RL (Right Leg) pins to attach and use your own custom sensors. Additionally, there is an LED indicator light that will pulsate to the rhythm of a heartbeat. Biomedical Sensor Pads and Sensor Cable are required to use the heart monitor and can be found in the Recommended Products section. RoboticsBD
| General Specification | |
| Operating Voltage (VDC) | 3.3 |
| Operating Temperature (°C) | -40 to 90 |
| Length (mm) | 36 |
| Width (mm) | 30 |
| Height (mm) | 18 |
| Weight (gm) | 5 |
| Cable Length (Meter) | 1 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 10 × 8 × 2 cm |

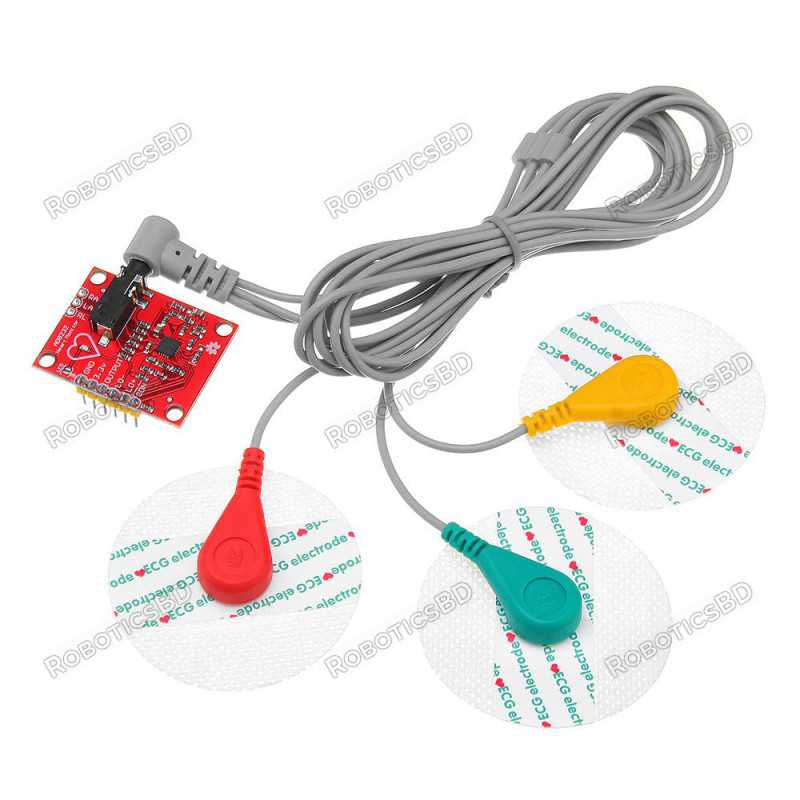

1 x AD8232 ECG Measurement Module Kit
1 x Sensor cable.
3 x Electrode Pads.
The latest price of AD8232 ECG Measurement Module Kit in Bangladesh is BDT 790 You can buy the AD8232 ECG Measurement Module Kit at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
