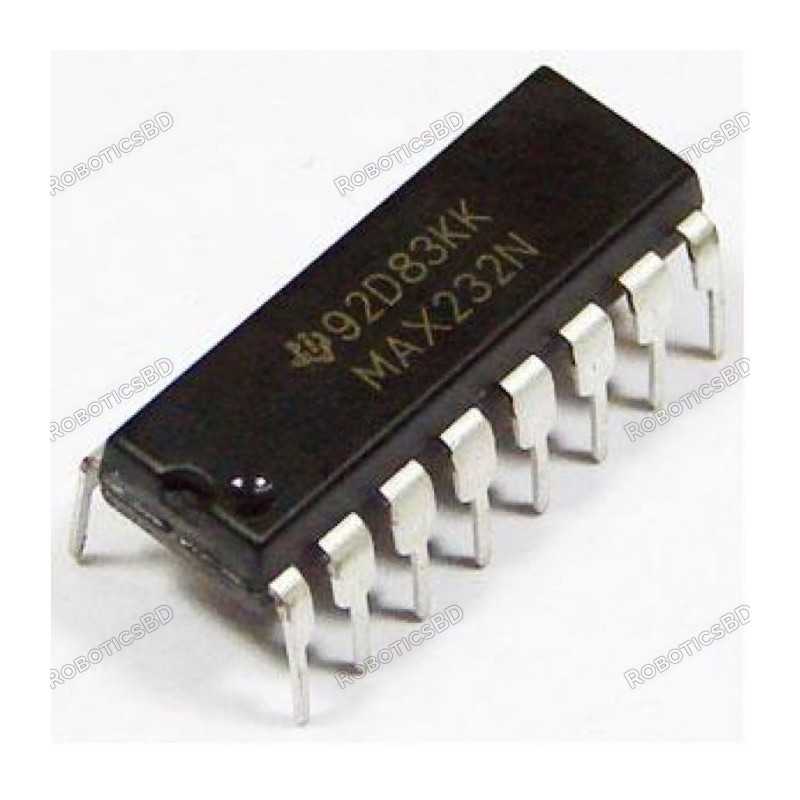

Max232 DIP

RBD-1296
  • IC Name: MAX232x
  • Package/Case: DIP-16
BDT 50
Quantity
In-Stock

12 people recently added this item to the cart
40 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

The MAX232 device is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. LTIA/EIA-232-F
  2. Battery-Powered Systems
  3. Terminals
  4. Modems
  5. Computers

Features:

  1. Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28
  2. Operates From a Single 5-V Power Supply With 1.0-µF Charge-Pump Capacitors
  3. Operates up to 120 kbit/s
  4. Two Drivers and Two Receivers
  5. ±30-V Input Levels
  6. Low Supply Current: 8 mA Typical
  7. ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A)
  8. Upgrade With Improved ESD (15-kV HBM) and 0.1-µF Charge-Pump Capacitors is Available With the MAX202 Device

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Package/Case PDIP-16
Minimum Supply Voltage (V) 3
Maximum Supply Voltage (V) 18
Product Type

MAX232x Dual EIA-232 Drivers/Receivers

MAX232, MAX232I
Operating Temperature Range (°C) –55° C to +125° C
Mounting Type Through Hole
Shipment Weight 0.005 kg
Shipment Dimensions 3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. Datasheet

Package Includes:

1 x Max232 DIP.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

What is the price of Max232 DIP in Bangladesh?

The latest price of Max232 DIP in Bangladesh is BDT 50 You can buy the Max232 DIP at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
