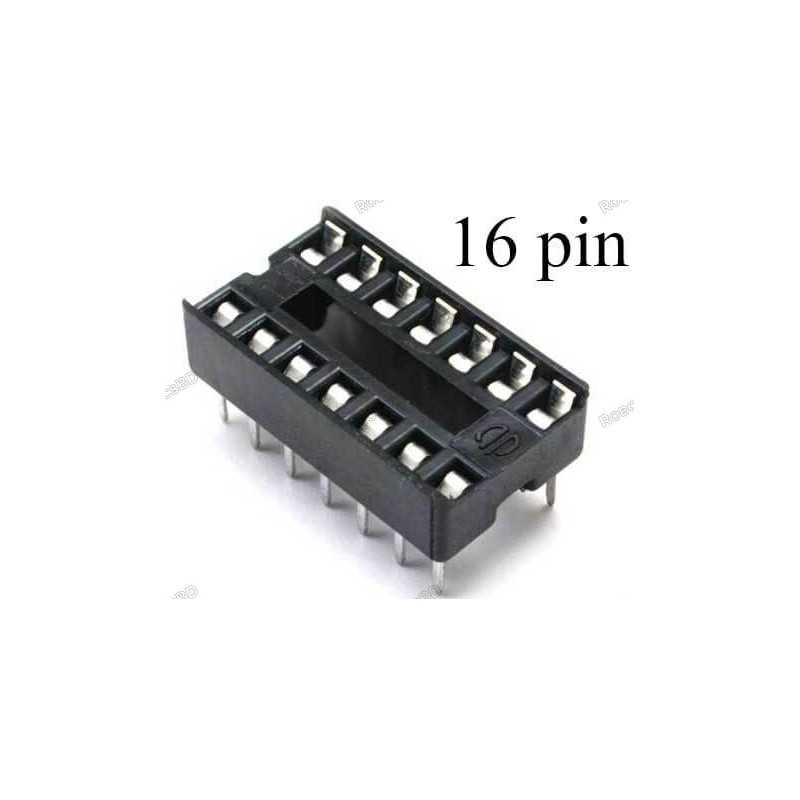

16 Pin DIP IC Base/Socket

Name: 16 Pin DIP IC Base/Socket
SKU: RBD-1715
Price: 5.00 BDT
Availability: InStock
Rating: 5 (15 reviews)

Reference RBD-1715

16 pins.
Molded notch for proper orientation.
Easy to insert and remove ICs.

BDT 8

BDT 5 Save BDT 3

Discount Ends In

2025-04-23 00:00:00

Read the 15 reviews

Average rating: 5/5 - Number of reviews: 15

Quantity

In-Stock

77 people have purchased this item in last 12 months

109 people recently added this item to the cart

493 items in stock

Notify Me

Store Pickup Available!
Free Ship Over 5000 BDT
Quality Product
No Warranty
No Replacement

16 Pin IC Socket base adaptor is a 16 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder.

The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

16 pins.
JDEC compliant.
Molded notch for proper orientation.
Easy to insert and remove ICs.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Current Handling Capacity (A)	1
No. of Contact Points	16
Contact Material	Phosphor Bronze
Contact Plating	Tin
Operating Temperature Range (°C)	-25 to 85
Flammability Rating	UL94V-0
Color	Black
Insertion Force	340g max per contact
Exertion Force	80g max per contact
Length (mm)	20
Width (mm)	10
Height (mm)	4
Weight (gm)	1 (approx.) (each)
Shipment Weight	0.005 kg
Shipment Dimensions	3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Included:

1 x 16 Pin DIP IC Socket Base Adaptor
