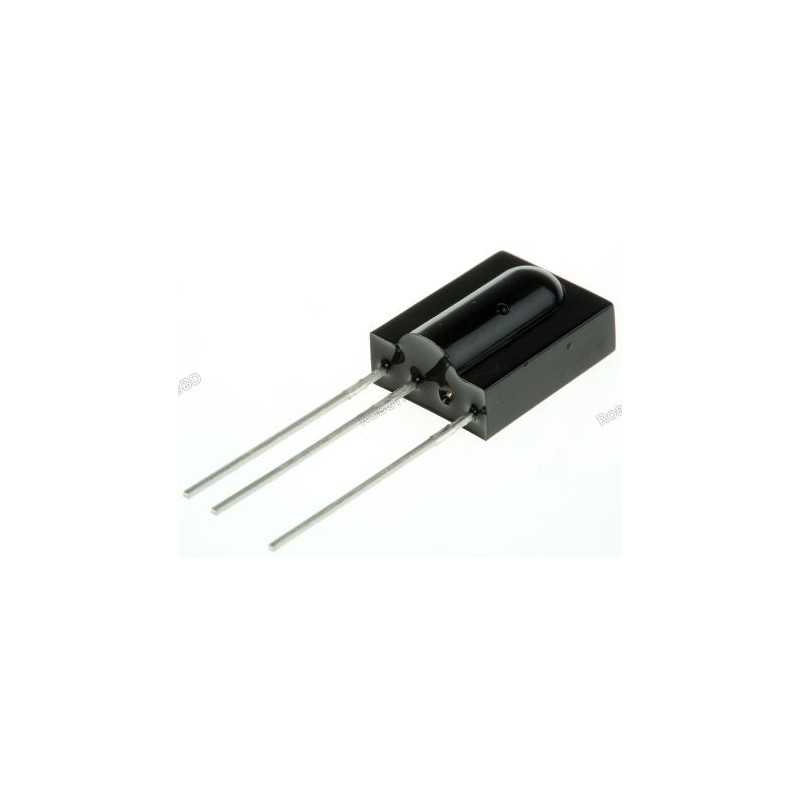

IR receiver Diode
  • IR receiver Diode

IR receiver Diode

RBD-0756
  • Very low supply current
  • Photo-detector and preamplifier in one package
  • Internal filter for PCM frequency
  • Improved shielding against EMI
  • Supply voltage: 2.5 V to 5.5 V
  • Improved immunity against ambient light
BDT 15
rating Read the 17 reviews
Average rating: 4.5/5 - Number of reviews: 17
Quantity
In-Stock

281 people have purchased this item in last 12 months
85 people recently added this item to the cart
33 items in stock
notifications Notify Me
  • Store Pickup Available! Store Pickup Available!
  • Free Ship Over 5000 BDT Free Ship Over 5000 BDT
  • Quality Product Quality Product
  • No Warranty No Warranty
  • No Replacement No Replacement

IR receiver diodes can be used in object detection applications like line follower, obstacle detecting robots etc.

Note: Product images may vary from actual product as our stock rotates. RoboticsBD

Applications :
  1. Optical switch.
  2. Light detecting portion of a remote control.
  3. AV instruments such as Audio,TV,VCR,CD,MD,DVD,etc.
  4. Home appliances such as Air-conditioner, Fan,etc.
  5. CATV set-top boxes.
  6. Multi-media Equipment. RoboticsBD

Features:

  1. Very low supply current.
  2. Photo-detector and preamplifier in one package.
  3. Internal filter for PCM frequency.
  4. Improved shielding against EMI.
  5. Supply voltage: 2.5 V to 5.5 V.
  6. Improved immunity against ambient light. RoboticsBD



General Specification
Input Supply Voltage (VDC) 2.5 ~ 5.5
Transmission Distance 45 m
Carrier Frequency 38 kHz
Beam Angle 45 deg
Viewing Angle 45 deg
Output Current 5 mA
Operating Supply Current 350 uA
Power Dissipation 10 mW
Operating Temperature (°C) -25 ~+85
Shipment Weight 0.006 kg
Shipment Dimensions 3 × 3 × 3 cm

Package Includes:

1 x IR receiver Diode

What is the price of IR receiver Diode in Bangladesh?

The latest price of IR receiver Diode in Bangladesh is BDT 15 You can buy the IR receiver Diode at best price from our RoboticsBD or visit RoboticsBD Office.

Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product.

Product Images are shown for illustrative purposes only and may differ from the actual product.
Product Details
RBD-0756
33 Items
Good
rating
19/02/2022
SCB
The product was well packed.
Good product
rating
20/01/2022
Shadman Saquib
Found in working conditions
receiver Diode
rating
31/08/2021
Joy Mondal
Kub baje. Product dice. .. Onik. Order. Korcilam...ar. Modde. Onik. Nosto. Dice. Ata akta.
Product quality
rating
23/08/2021
Ayat Ullah\r\n
good
Good
rating
11/06/2021
Asad
Work fine good quality
Good
rating
03/04/2021
Mithul
Good
Good
rating
12/02/2021
Shadman Saquib
It\'s good
IR receiver Diode
rating
03/01/2021
Dolon Roy
good
IR receiver Diode
rating
21/10/2020
Muhammad Rubel
good product
ir recever
rating
07/10/2020
Muhammad Rubel
Very good products
Riaj
rating
06/10/2020
Mohammad Riajul Hoque Chy
found goods in good condition and well packaged
Good Product
rating
02/09/2020
Nayeem Hossain
ভালো ছিলো।
Zubair khan
rating
29/07/2020
Zubair khan
Valo
Review
rating
17/07/2020
Danial
valo
Datasheet
rating
26/04/2020
Ahnaf Hasan
No idea about the pinout if this sensor
IR Recv
rating
14/09/2019
Nomun Sheikh
Can\'t find any datasheet. Pin out is unknown.
ir
rating
16/08/2019
ESTIAK KHAN
good
