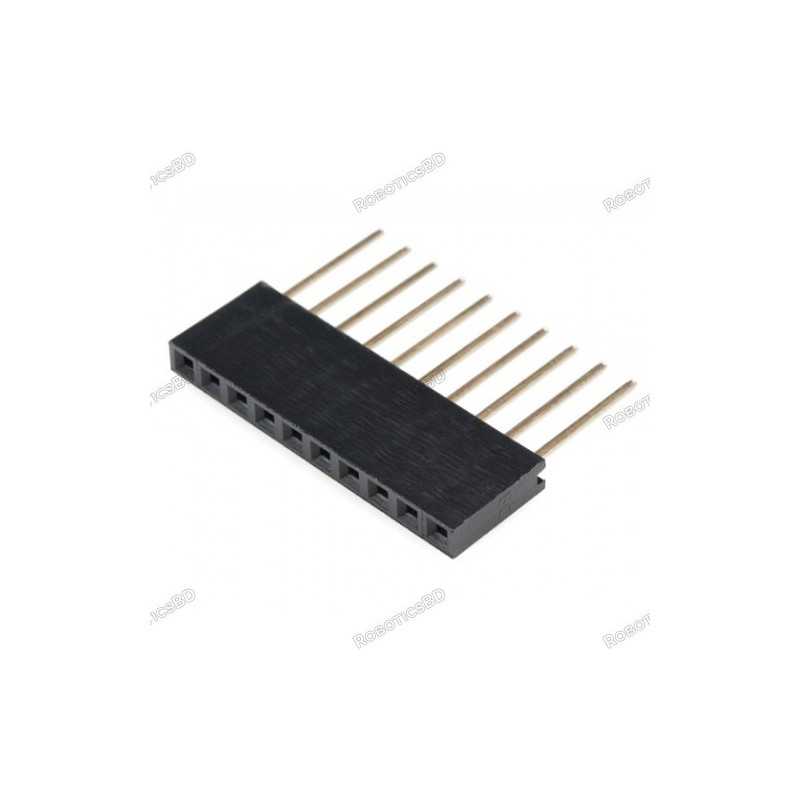

10 Pin Female 11mm tall stackable Header Connector for Arduino. The female header is suited for a variety of stuffing in the Arduino shield board control panel. Stitch length is 11mm and great for stacking Arduino shields.
Stacking headers are a type of breadboard pitch female connector with extended male pins on the bottom. These extended male pins are compatible with the female sockets found on many popular microcontrollers (such as the Arduino) and allow for circuit boards to be connected (without a mess of wires) and still be removable.
This specific header has 1 row of 10 pins. The Female Sockets measure 8.5mm tall while the male pins measure 11mm long. Each order includes one 10 pin stacking header.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Note: Product images/ Components brand may vary from actual product as our stock rotates.
| General Specification | |
| Pitch | 2.54mm. |
| Contact Pins Material | Brass |
| Pin Length | 11mm |
| Plastic height | 8.5mm |
| Gender of Connector | Female |
| Number of Pins | 10 Pin |
| Type of Row | Single-Row |
| Body Orientation | Straight |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 4 × 4 × 1 cm |
Please allow 5% measuring deviation due to manual measurement.
1 x Arduino Stackable Header Kit (10 pin)
The latest price of Arduino Stackable Header Kit (10 pin) in Bangladesh is BDT 21 You can buy the Arduino Stackable Header Kit (10 pin) at best price from our RoboticsBD or visit RoboticsBD Office.
|
Please note that the product information provided on our website may not be entirely accurate as it is collected from various sources on the web. While we strive to provide the most up-to-date information possible, we cannot guarantee its accuracy. We recommend that you always read the product labels, warnings, and directions before using any product. |
|
Product Images are shown for illustrative purposes only and may differ from the actual product. |
