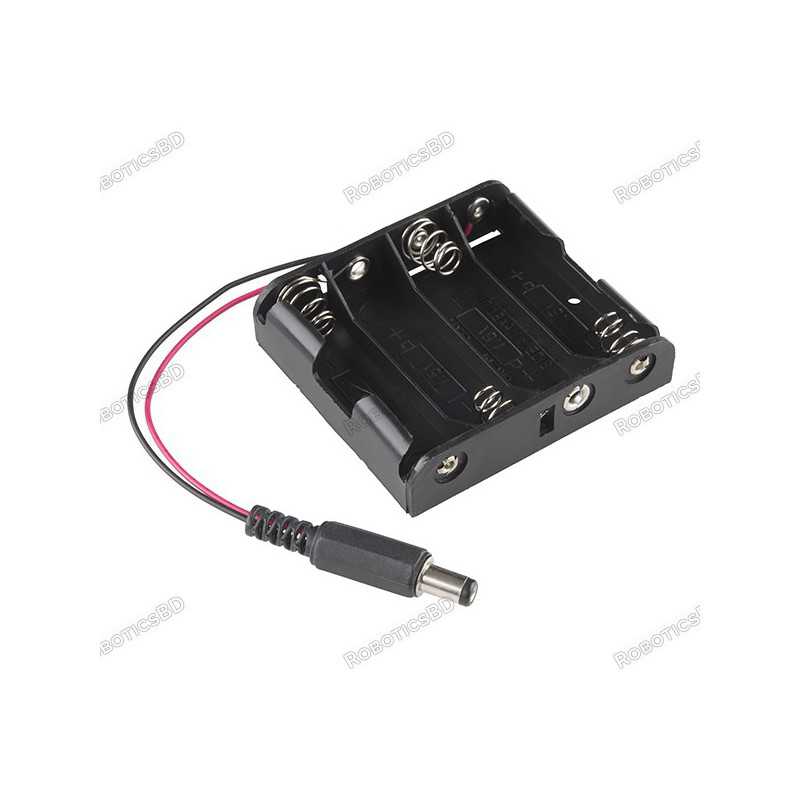

This is a Black Plastic Storage Box Case Holder for Battery 4 X AA Cell Box, with DC Power Plug. The 5-inch cable is terminated with a standard 5.5×2.1mm, center positive barrel jack connector. The connector mates with the barrel jack on the Arduino (among a number of other products) allowing you to easily make your project battery powered. RoboticsBD
The case box can keep your batteries organized and protected. The holder case is designed with leads for easy to solder and connect. This battery holder case is perfect for the devices need a 6V external battery. . Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Note: the average voltage regulator has about 1V of dropout (but can vary greatly). This pack, with normal alkaline batteries, will output ~5.5V causing a normal 5V board to run at around 4 to 4.5V. This depends on a lot of what board and processor you are using with the battery pack.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
General Specification | |
Compatible Battery Size | AA Battery |
Material | Plastic |
Internal Connections | Series |
Output Voltage(V) | 6 |
ON/OFF Switch | NO |
Cable Length (cm) | 15 |
Color | Black |
Dimensions in mm (LxWxH) | 62x58x15 |
Weight (gm) | 14 |
Shipment Weight | 0.018 kg |
Shipment Dimensions | 7 × 6 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
1 x AA Battery Holder 4S with Barrel Jack Connector (Battery Not Included).
The latest price of AA Battery Holder 4S with Barrel Jack Connector in Bangladesh is BDT 95 You can buy the AA Battery Holder 4S with Barrel Jack Connector at best price from our RoboticsBD or visit RoboticsBD Office.
