XTAR VC4 Charger is a smart charger designed by XTAR, compatible with almost all type of rechargeable batteries like Li-ion/IMR/INR/ICR/Ni-MH/Ni-Cd/LiFePO4 batteries, as well as a high grade performance, With a large digital LCD display, easily to understand battery charging parameters and processes.
Xtar has upgraded battery charger from XTAR VC4S extend version, with USB C port and 18W adapter, able to charge Lithium-ion and Ni-MH batteries at the same time with different but suitable charging methods, Rechargeable batteries of 3.6V 3.7V 10440 14500 14650 16340 17335 17500 17670 18350 18490 18500 18650 18700 20700 21700 22650 25500 26650 32650 Li-ion and 1.2V AAAA AAA AA A SC C D Ni-MH Ni-CD are compatible with xtar VC4 plus rechargeable battery charger. RoboticsBD
Features:
- Smart LCD Display The smart LCD screen will show charging current, battery voltage, charging capacity, internal resistance and battery type of the rechargeable batteries on the screen when XTAR VC4 plus battery charger is connected to power supply and batteries are inserted
- Special Design for Using 3A,2A,1A,0.5A and 0.25A optional charging current for your choice, stripe crack for better heat losing, upgraded microchip for multiple protection of the batteries, upgraded 3 operation modes for checking the health status of batteries, XTAR VC4 plus battery charger is designed to offer the best using experience
- Triple Operation Mode Fast 21700 battery charger XTAR VC4 PLUS can test your batteries’ real capacity with the grade mode. 18650 battery and charger VC4 Plus can maximize your batteries lifespan with the Storage mode
- Power up Your Rechargeable Batteries Get the rechargeable batteries reused and live a eco-friendly life! Before using a battery charger, please check your batteries to see if they are rechargeable and if they are compatible with the battery charger. You will get: VC4 Plus Charger, USB C cable,
- Automatically stops charging upon charging completion. RoboticsBD
General Specification |
Model |
VC4 |
Input Power |
DC 5.0V/2.1A |
0.5A Constant Current |
500mA |
1.0A Constant Current |
1000mA |
End of Charge Voltage |
4.20V / 1.45V |
0.5A End of Charge Current |
<60mA |
1.0A End of Charge Current |
<100mA |
Operating Temperature |
0-40 degree Celsius |
Size (mm) |
149 x 115 x 35 |
Weight (gm) |
210 |
Shipment Weight |
0.290 kg |
Shipment Dimensions |
15 × 12 × 3.5 cm |
Package Includes :

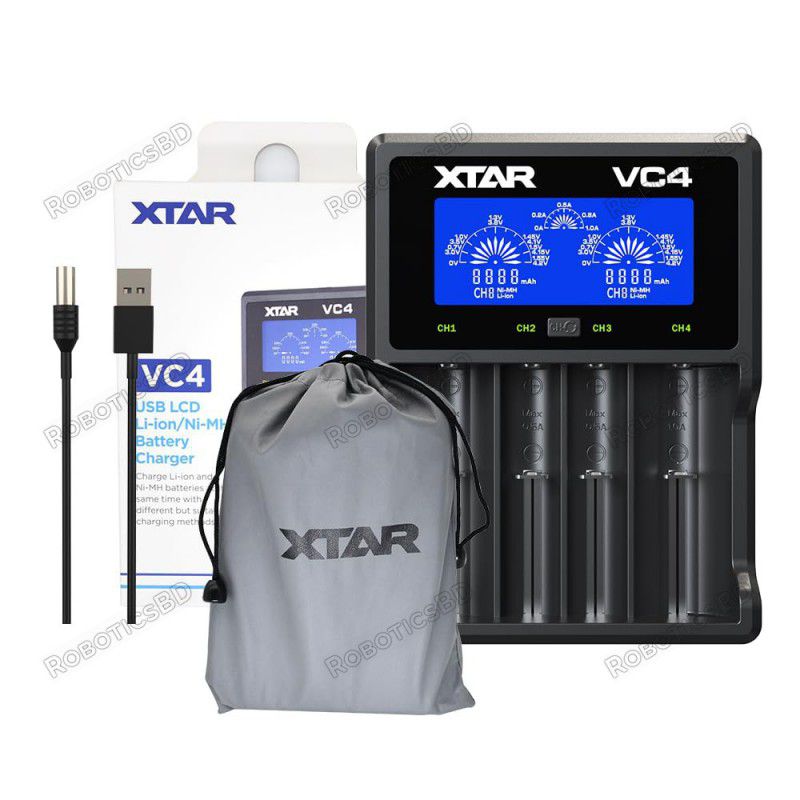

1 x XTAR VC4 Charger for Lithium-ion and Ni-MH Batteries
